Outdoor LED-spotlight-set black (6000K, cool white)

Set of black recessed LED spotlights with remote control

6000 Kelvin colour temperature ✓ Black powder coating ✓ For indoor and outdoor use ✓

The S-Polylight LED recessed spotlight complete set in elegant black combines modern lighting design with sophisticated functionality. It includes a compact LED power controller, a powerful wireless remote control and all connection cables. Depending on your requirements, the set is available in versions with 4, 6, 8, 10 or 12 mini spotlights. Measuring just 36 mm, the spotlights impress with their discreet design and light quality. Equipped with high-quality 5050 SMD LEDs, they produce a cool white light (6000K) that is very close to natural daylight. With 3 watts of power per spotlight and a light output of 190 lumens, they provide clear and neutral illumination – ideal for modern terraces, covered outdoor areas or targeted lighting accents in interior spaces. The powder-coated housing made of solid aluminium in RAL 9005 black is not only a visual highlight, but also robust and durable. Thanks to IP65 protection class, the spotlights are protected against dust and splash water and are therefore ideal for outdoor use. At the heart of the system is the LED power controller, which combines a 12V power supply, dimmer and 2.4 GHz radio receiver in one compact device. It supplies up to 12 spotlights with a total output of 36 watts and enables convenient control via radio remote control – from adjusting the brightness to simply switching the lights on and off..

Everything you need for installation is included! Even the hole saw is included in the set!

The S-Polylight LED recessed spotlights are supplied as a well-designed complete set that includes all the components needed for smooth and easy installation. Thanks to the practical plug connections, installation is quick and easy – fast, safe and requiring no specialist knowledge. The modern 2.4 GHz wireless remote control with an incredible range of up to 30 metres ensures optimum ease of use. It can be used to switch the lighting on and off or to adjust the brightness. This allows you to create the right lighting atmosphere in no time at all – whether it's bright, neutral light for working or softly dimmed lighting for relaxing hours in the garden or living room..

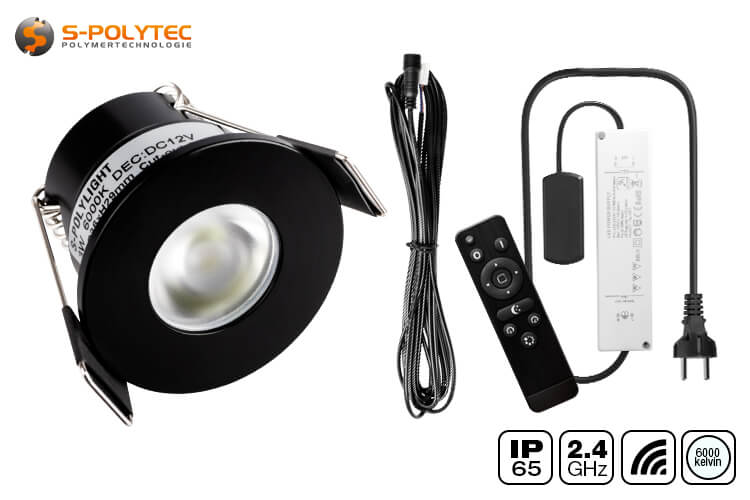

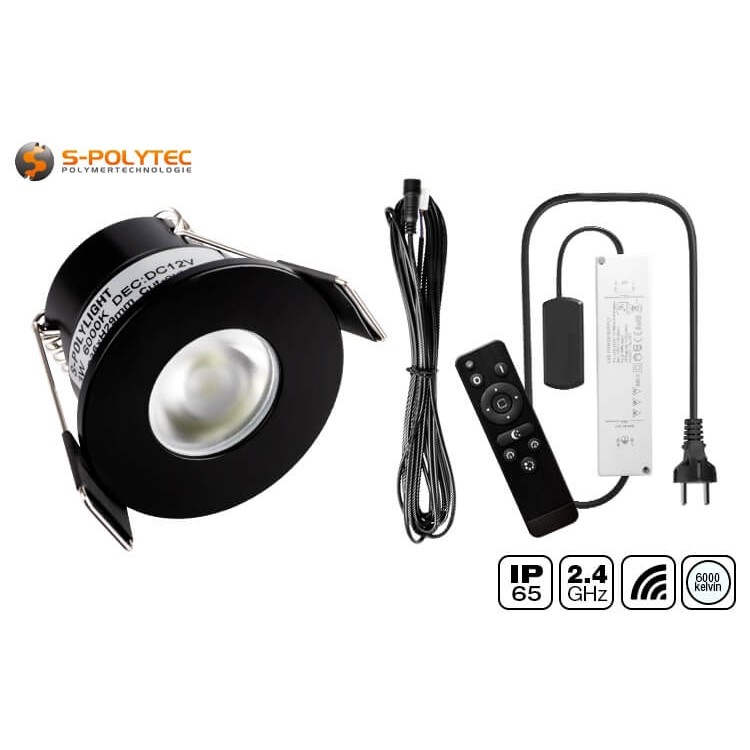

Scope of delivery of the complete recessed spotlight set

• LED recessed spotlight DR-SP3K in black with 12V / 3W (6000K, cool white))
• 5M connection cables with pre-assembled plugs
• 12V LED power controller for up to 12 recessed spotlights
• 2. 4GHz wireless remote control for convenient control
• Ø 28 mm bi-metal hole saw for aluminium, wood and plasterboard

NOTE: Depending on the set size, the delivery includes 4, 6, 8, 10 or 12 spots and connecting cables..

Features of cold white outdoor LED lighting in black

The compact mini LED spotlights in deep black combine discreet design with impressive light output. The round, 36 mm small housing can be discreetly integrated into dark ceilings, furniture, niches or frames, but also sets stylish accents as a contrasting accent on light surfaces. With an installation diameter of only 28 mm and a depth of 29 mm, the spotlights fit even in very confined installation situations, while robust clamping brackets ensure a secure hold. The spotlights emit a neutral, cool white light of 6000 Kelvin, which is very close to daylight at midday. This clear, natural light is ideal for evenly illuminating patio roofs, carports, entrance areas or walkways, while creating a modern outdoor atmosphere. The small black spotlights also work well indoors, bringing a loft or industrial character to open-plan living spaces, accentuating stairwells, kitchen worktops or bathroom areas and ensuring natural colour rendering that allows colours and materials to appear unaltered. With an output of 3 watts, each spotlight produces 190 lumens of light, which can be conveniently dimmed using the remote control. Thanks to IP65 certification, the spotlights are also dust and splash-proof – perfect for flexible indoor and outdoor use..

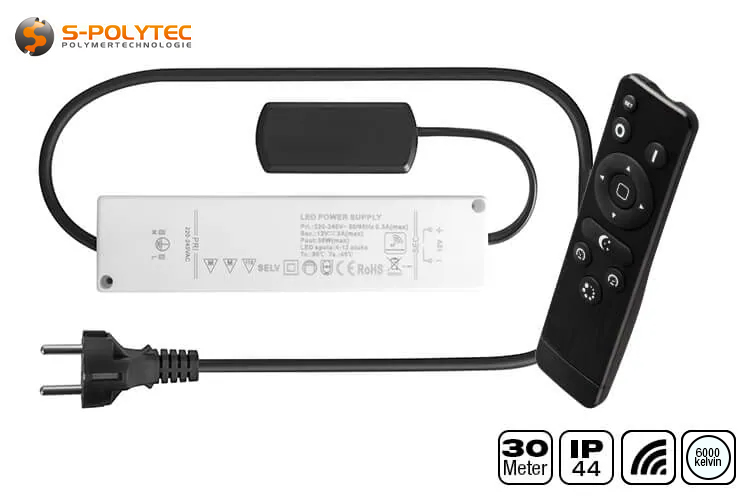

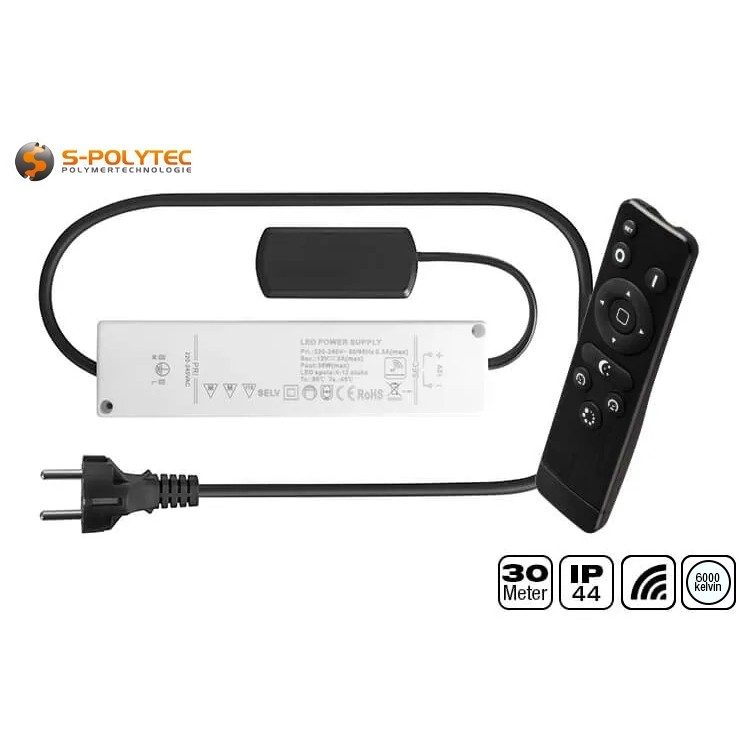

The S-Polylight LED Power Controller DR-CON36W literally forms the centre of the entire system, because this is where everything comes together. Not only does it provide a stable 12-volt power supply to the LED spotlights via the HUB, to which the connection cables of the individual spotlights are plugged in, but it is also equipped with a dimmer and an integrated 2.4 GHz radio receiver. This allows all functions to be conveniently controlled by remote control – from simple switching on and off to individual brightness adjustment. The compact power supply unit is connected directly to a power socket with its permanently attached supply cable and Euro plug. With a maximum total output of 36 watts, the system remains powerful and flexible – ideal for both small installations with 4 spots and larger lighting solutions with 12 LED recessed spotlights. The scope of delivery also includes the appropriate connection cables: each cable is five metres long and has a 2-pin plug for the HUB and a secure screw connection for the spotlight. This guarantees quick, tool-free installation – even if the spotlights are placed a little further apart..

The compact wireless remote control makes controlling LED lighting particularly convenient. Switching lights on and off, gently dimming them in 10 or 20 per cent increments, or calling up predefined lighting scenes – everything is just a button press away. Thanks to modern 2.4 GHz wireless technology, the controller does not need to be visible; it even works through walls or from a distance of up to 30 metres. The robust black ABS housing fits comfortably in the hand. Rubberised buttons ensure comfortable handling and a pleasant feel. On the back is the battery compartment for two 1.5-volt AAA batteries, which power the remote control so that the atmospheric lighting is ready for immediate use. However, the required batteries are not included in the scope of delivery..

Each complete set contains a high-quality 28 mm bi-metal hole saw, which can be used to quickly and precisely cut out the openings for the LED recessed spotlights. Thanks to its progressive alternating teeth, the saw can be used effortlessly on materials such as light metal, plastic, plasterboard, wood, HPL or aluminium composite panels. The ground HSS centring drill bit ensures precise positioning, can be easily replaced if necessary and guarantees clean drill holes without slipping on hard materials. The practical ejector spring makes it easy to remove the cut-out remnants. The robust triangular shank ensures a secure hold in all standard cordless screwdrivers, so that the LED spotlights can be installed quickly, cleanly and without delay..

Advantages of our black LED recessed spotlights

• The black LED spotlights create a striking contrast to light or coloured surfaces.
• The cool white light with a colour temperature of 6000K appears neutral without any distracting blue tint.
• The very compact housing also allows installation in mounting situations with limited space.
• The 12V LED power controller is equipped with a 2.4GHz radio receiver and a dimmer.
• The radio remote control with a maximum range of 30 metres offers maximum ease of use.
• The aluminium housing with black powder coating does not fade due to UV radiation.
• The LED spotlights are suitable for outdoor use and sealed in accordance with protection class IP65.

Installation and connection of black recessed spotlights

The LED lighting can be installed in no time at all – in just three simple steps, everything is connected and ready to use. The set contains everything you need for installation, including a handy 28 mm hole saw, so you can start assembling it as soon as you unpack it. A cordless screwdriver is all you need for installation, and the remote control is powered by two 1.5-volt AAA batteries. This means that the smart light is ready to use in no time and immediately creates a modern atmosphere..

1. Drilling the mounting holes
To install the recessed spotlights, first carefully mark the desired positions. Ensure that there is an installation depth of at least 29 mm and that the connection cables can be laid to the power controller without any obstacles. Then drill round cut-outs with a diameter of 28 mm. Each complete LED set contains a suitable bi-metal hole saw for this purpose, which can be easily used in a standard cordless screwdriver. The integrated centring drill ensures precise positioning of the holes, while the speed should be adjusted to the respective material in order to achieve clean, accurate cut-outs..

2. Wiring the spotlights

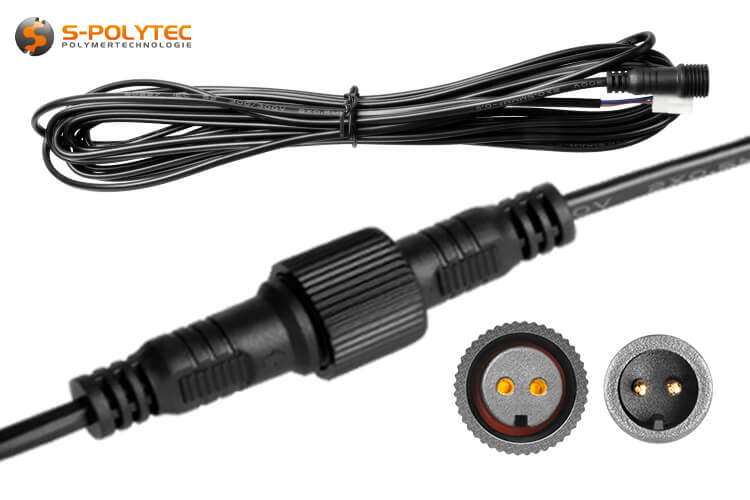

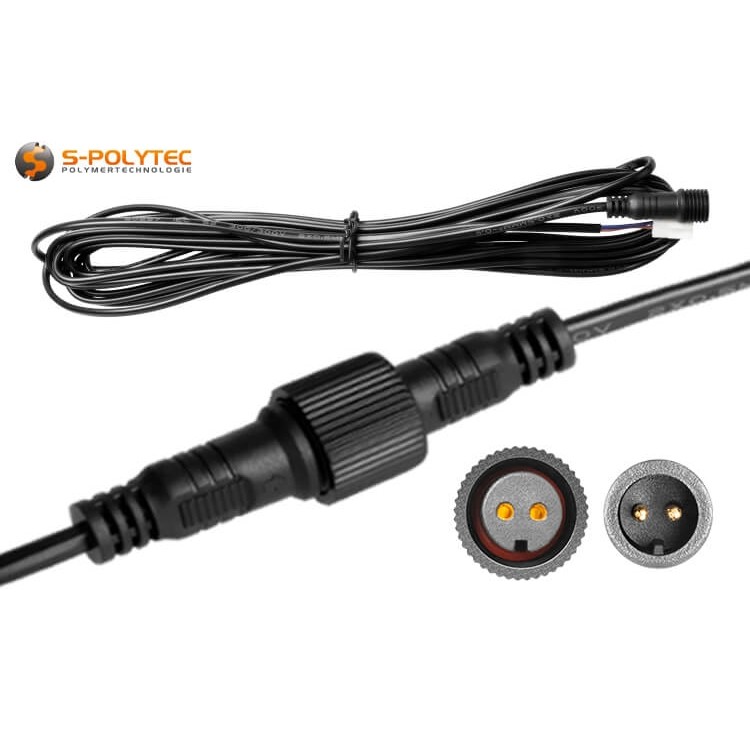

Before inserting the LED spotlights with the spring clamps into the installation openings, the connection cable must be laid from the spotlight to the power controller. The small white 2-pin plug should point towards the controller, as it will later be plugged into the HUB. Even though the cable is properly insulated, care must be taken to ensure that it is not routed over sharp edges or stretched too tightly to avoid damage. If the standard length of 5 metres is not sufficient, the cable can be extended by a further 5 metres on the side with the screw-on plug contact using the optional extension cable. Connecting the LED spotlights themselves is very easy. The round plug of the 5-metre cable is inserted into the coupling of the LED spotlight, with a notch preventing incorrect insertion. The plastic screw connection is then tightened by hand, reliably protecting the cable against dust and splash water – an important protection, especially for outdoor applications. Finally, plug the other end of the cable with the small white plug into the controller's HUB, where the plug shape also prevents polarity reversal. Repeat this process for each spotlight until all are correctly connected and installed..

3. Coupling the controller
Before plugging the power cord into the socket, the batteries must be inserted into the remote control, because as soon as the LED power controller is supplied with power, pairing mode starts. The LED spots light up. Within a short period of five seconds, the mode button in the centre of the round brightness control must be pressed to establish the connection between the controller and the remote control. The lighting can then be switched on and off or the brightness adjusted using the wireless remote control. If several controllers are to be operated with the same remote control, the pairing button must be held down a little longer so that all controllers are successfully paired one after the other..

Optional accessories to complement the complete recessed spotlight sets

• LED recessed spotlight DR-SP3K with 3W (6000K, cool white) incl. 5M connection cable
• SmartHome Controller DR-HOME36W with extensive smart home functions
• 5M connection extension with sealed screw-on connectors
• 2.4GHz wireless remote control as a second remote control with a range of 30 metres

WARNING: The 12-volt LED recessed spotlights must not be connected to the 230-volt mains supply and may only be operated with the DR-CON36W LED power controller or the DR-HOME36W SmartHome controller. Other 12-volt power supplies may result in functional limitations. Only the supplied connection cables or designated S-Polylight connection extensions may be used for cabling. Failure to comply with this requirement may result in property damage and personal injury..

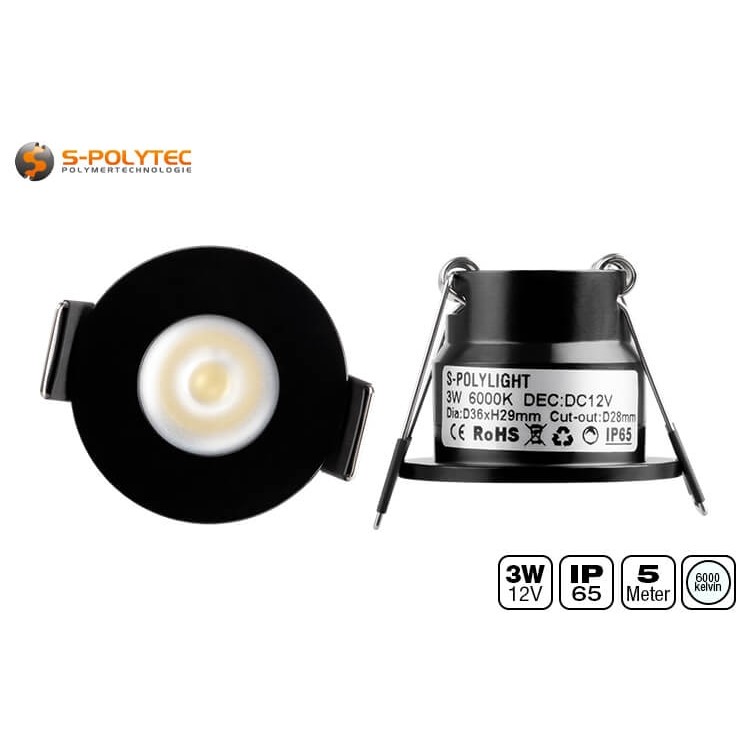

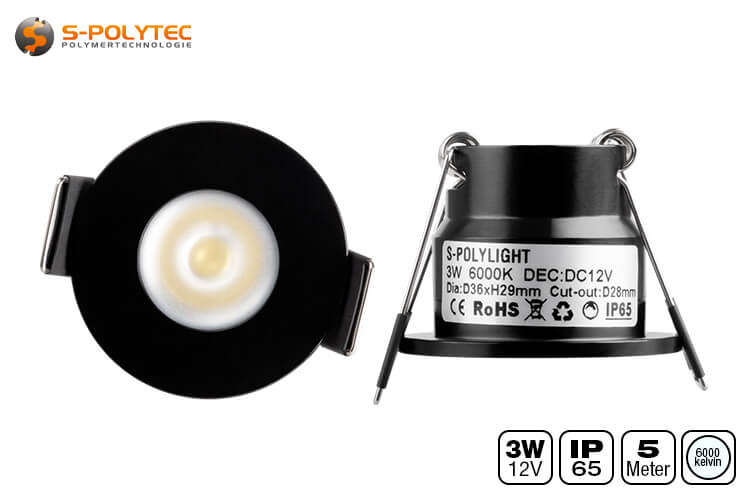

Data on the S-Polylight recessed spotlight DR-SP3K

• Product type: Recessed spotlight
• Material (housing): Aluminium (lackquered)
• Colour (housing): Jet black (RAL 9005)
• Shape housing: Round
• Diameter housing: 36mm
• Installation type: Installation (with clamping brackets)
• Installation diameter: 28mm
• Installation depth: 29mm
• Protection class: IP65 (dust and splash-proof)
• Performance: 3W per single spot
• Colour temperature: 6000 Kelvin (cold white)
• Brightness: 190 lumens per single spot
• Dimmable: Yes (controller and remote control included)
• CRI: >80
• Energy efficiency class: G

Data on the S-Polylight Power Controller DR-CON36W

• Product type: Power controller
• Material (housing): PVC
• Colour (housing): White/black
• Dimensions housing (controller): 187mm x 40mm x 25mm
• Dimensions housing (HUB): 70mmx30mmx25mm
• Mains power connection: Euro plug (900mm length)
• LED spot connection: 2-pole plug
• Input voltage: 85 Volt-265 Volt AC
• Output voltage: 12 Volt DC
• Protection class: IP44 (solid and splash-protected)
• Number of spots: Varies (max. 12 spots)
• Performance: 12W/18W/24W/30W/36W
• Frequency range: 2.4GHz (Remote control included)
