Outdoor LED-spotlight-set black (3000K, warm white)

Set of recessed LED spotlights in black with remote control

Warm white light (3000K) ✓ Painted aluminium housing ✓ Also suitable for outdoor use ✓

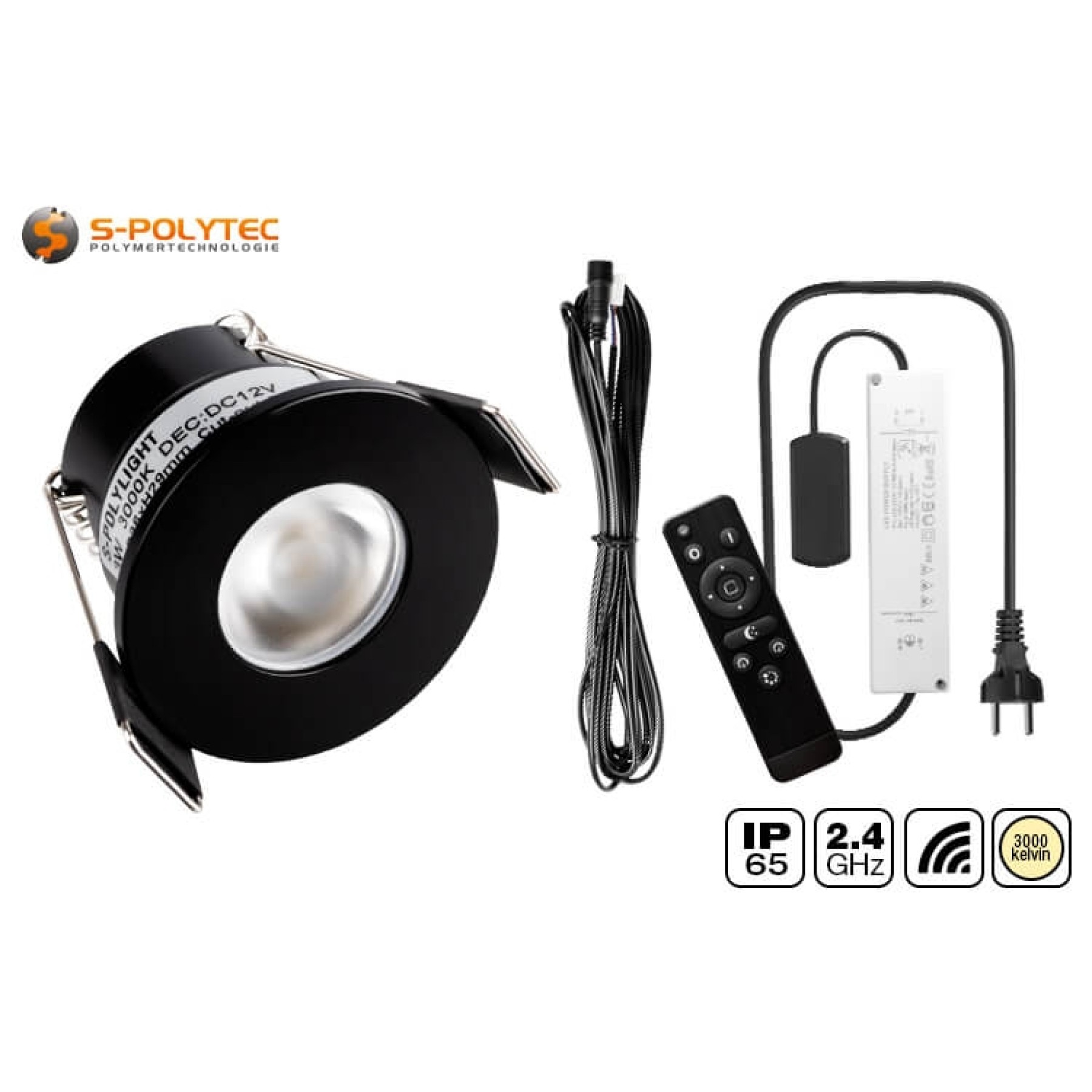

The S-Polylight LED recessed spotlight complete set in black includes the LED power controller, a remote control and all necessary connection cables, and is available in versions with 4, 6, 8, 10 or 12 mini spotlights. The small LED spotlights with a diameter of 36mm emit warm white light (3000 K). They each have a power output of 3 watts and are waterproof, wired in a black powder-coated housing (RAL 9005) made of solid aluminium. The compact LED power controller combines a 12V power supply with a 2.4 GHz radio receiver including an integrated dimming function and supplies up to 12 spots with a maximum total power of 36 watts simultaneously. The set is ideally sized for the narrow struts of patio roofs, making all components suitable for protected outdoor areas.

With every order of complete LED sets, we will provide the Ø28mm bi-metal hole saw free of charge!

The S-Polylight LED recessed spotlights are supplied as a practical complete set containing all components required for installation and operation. Thanks to the straightforward plug connections, installation is quick and easy, even without technical knowledge. For added convenience, the set includes a powerful 2.4 GHz wireless remote control with a range of up to 30 metres. This allows you to not only switch the spotlights on and off, but also dim them continuously, adjusting the warm white light to the desired brightness at any time.

Scope of delivery of the complete recessed spotlight set

• LED recessed spotlight DR-SP3W in black with 3 watts of power (3000K, warm white)
• 5M connection cables with pre-assembled plugs for easy connection
• 12V LED power controller for connecting up to 12 recessed spotlights
• 2.4GHz wireless remote control for easy, convenient brightness control
• Ø28mm bi-metal hole saw for drilling holes in aluminium, wood and plasterboard

NOTE: The number of LED recessed spotlights and 5M connection cables corresponds to the selected set size.

Features of our outdoor LED lighting in black

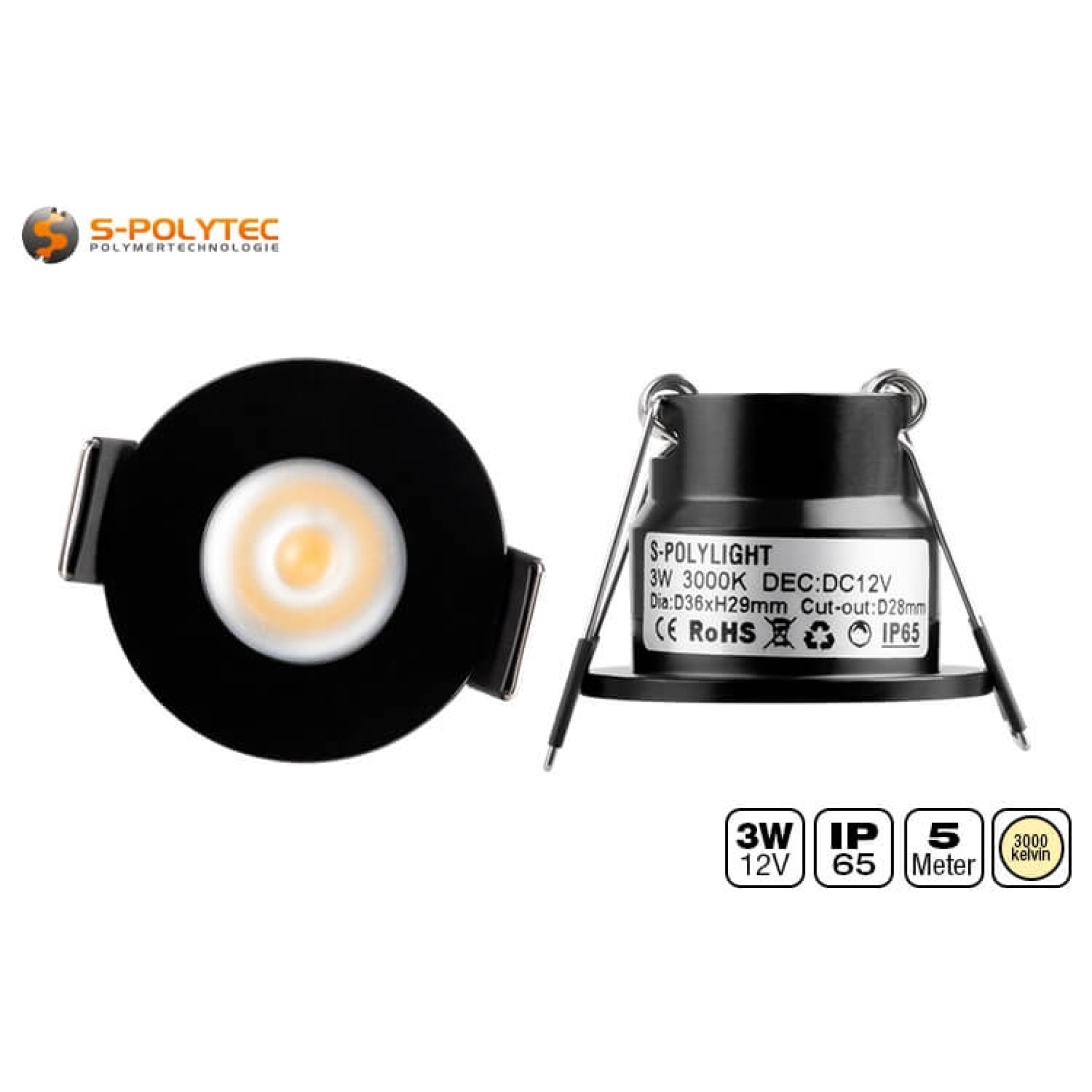

The centrepiece of the complete set are the compact mini LED spotlights with an outer diameter of only 36mm, the number of which depends on the selected set variant. Equipped with powerful 5050 SMD LED chips in warm white, they deliver up to 190 lumens per spotlight with a power consumption of 3 watts, and the brightness can be continuously adjusted using the remote control. The housing is made of black lacquered aluminium and blends harmoniously into patio roofs in black or RAL 9005. The recessed spotlights are also suitable for discreet lighting solutions in cupboards, ceiling panelling, roof overhangs or as pathway lighting. Installation requires a very small mounting hole with a diameter of 28mm and a depth of 29mm, which allows them to be used even in very confined spaces. Sturdy clamping brackets ensure that the spotlights are securely held in place in any installation situation.

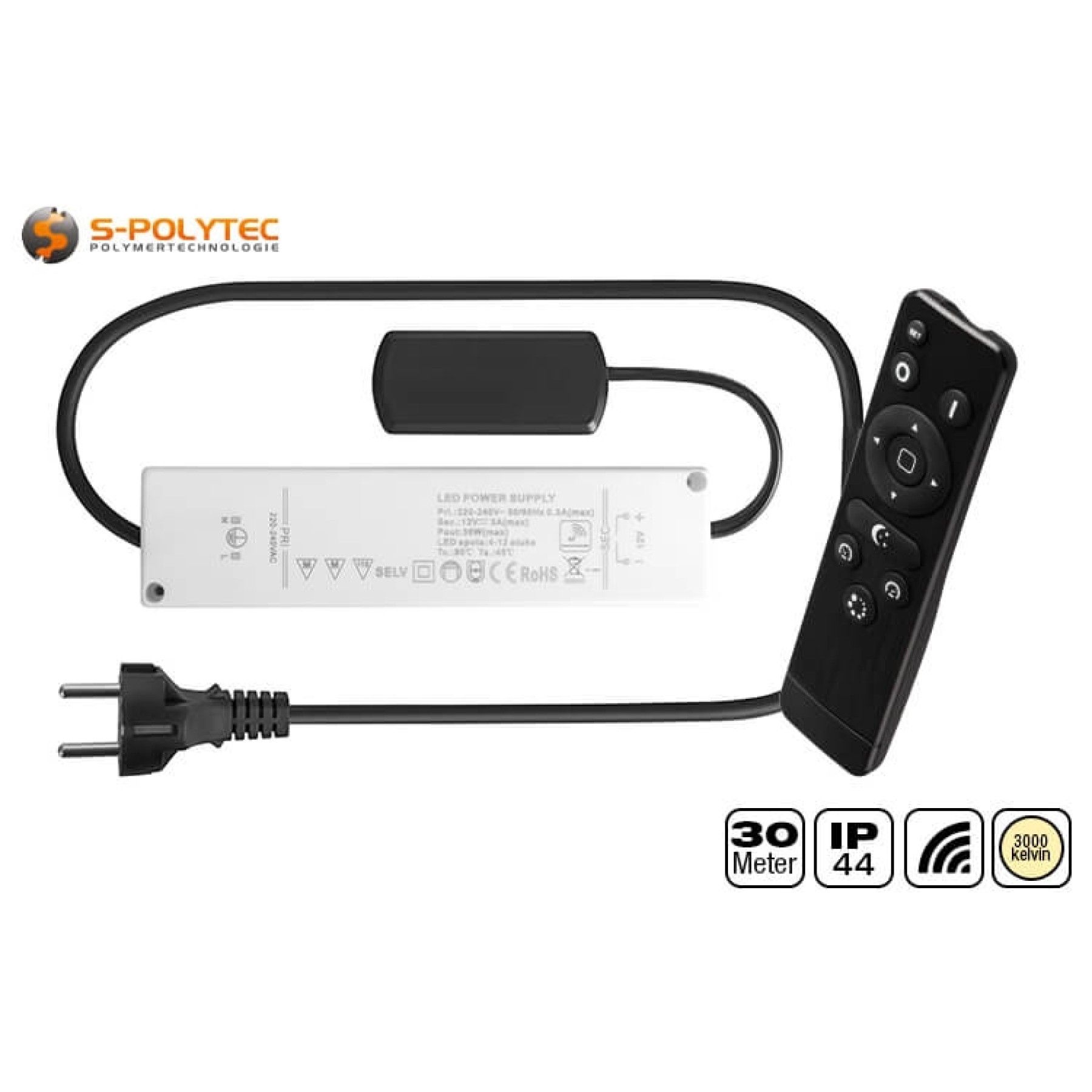

The central component of the lighting system is the S-Polylight LED Power Controller, which both supplies power to the built-in LED spotlights and acts as a control unit in conjunction with the wireless remote control. Technically, it is a 12-volt power supply with a Euro plug that connects directly to a power outlet. An integrated hub with twelve slots allows up to twelve spotlights with a total power of up to 36 watts to be connected. The number of mini LED spotlights in the set is matched by the number of connection cables included in the scope of delivery, each of which has a 2-pin plug for the hub and a screw-in plug contact for the spotlight. The standard cable length is five metres, which covers most installation situations. Optional extension cables with a length of 5 metres are available for longer distances.

The handy wireless remote control included in every set allows for convenient control of the lighting and is powered by two 1.5-volt AAA batteries (not included). Thanks to wireless transmission, it also works through walls and has a range of up to 30 metres. In addition to the on/off function, it offers various dimming options: the brightness can be adjusted in increments of 10% or 20%. For particularly quick adjustment, there are also three direct selection buttons that can be used to immediately set the brightness to 25% or 75%, supplemented by a night light function for subtle lighting.

With every order containing at least one complete LED set, we will include a high-quality bi-metal hole saw with a diameter of 28mm FREE OF CHARGE. This is perfectly matched to the installation diameter and is suitable for numerous materials such as aluminium – for example, for the cross struts of our patio roofs – wood, plasterboard, plastics or laminate. Thanks to its robust triangular shank, the hole saw can be used with any standard cordless screwdriver, allowing you to start installing your new lighting straight away without having to purchase any additional equipment.

Advantages of our black LED recessed spotlights

• The compact LED spotlights in RAL 9005 are a perfect visual match for black patio roofs
• The connection is made entirely without tools, using simple plug-in and screw connections
• Ready to install immediately thanks to a FREE hole saw with every order of complete LED sets
• The LED power controller with integrated dimmer can supply power to up to 12 spotlights
• A wireless remote control allows switching and dimming from up to 30 metres away
• The solid aluminium housing of the small LED recessed spotlights is powder-coated in black
• The black LED spotlights have protection class IP65 and are suitable for outdoor use

Installation and connection of black recessed spotlights

Installing the LED lighting requires just four very simple steps. Everything you need is included in the delivery, so you can start installing it as soon as you receive it. All you need is a cordless screwdriver and two 1.5V AAA batteries for the remote control.

1. Drilling the mounting holes
To install the recessed spotlights, mark the desired positions and cut out holes with a diameter of 28mm. It is important to ensure that the installation depth is at least 29mm and that the connection cables to the power controller can be laid. To ensure that the holes are drilled accurately, each complete LED set comes with a FREE bi-metal hole saw. This is suitable for any cordless screwdriver with a standard drill chuck. The centring drill ensures precise placement of the round cut-outs. The speed should be adjusted to the respective material.

2. Laying the connection cables

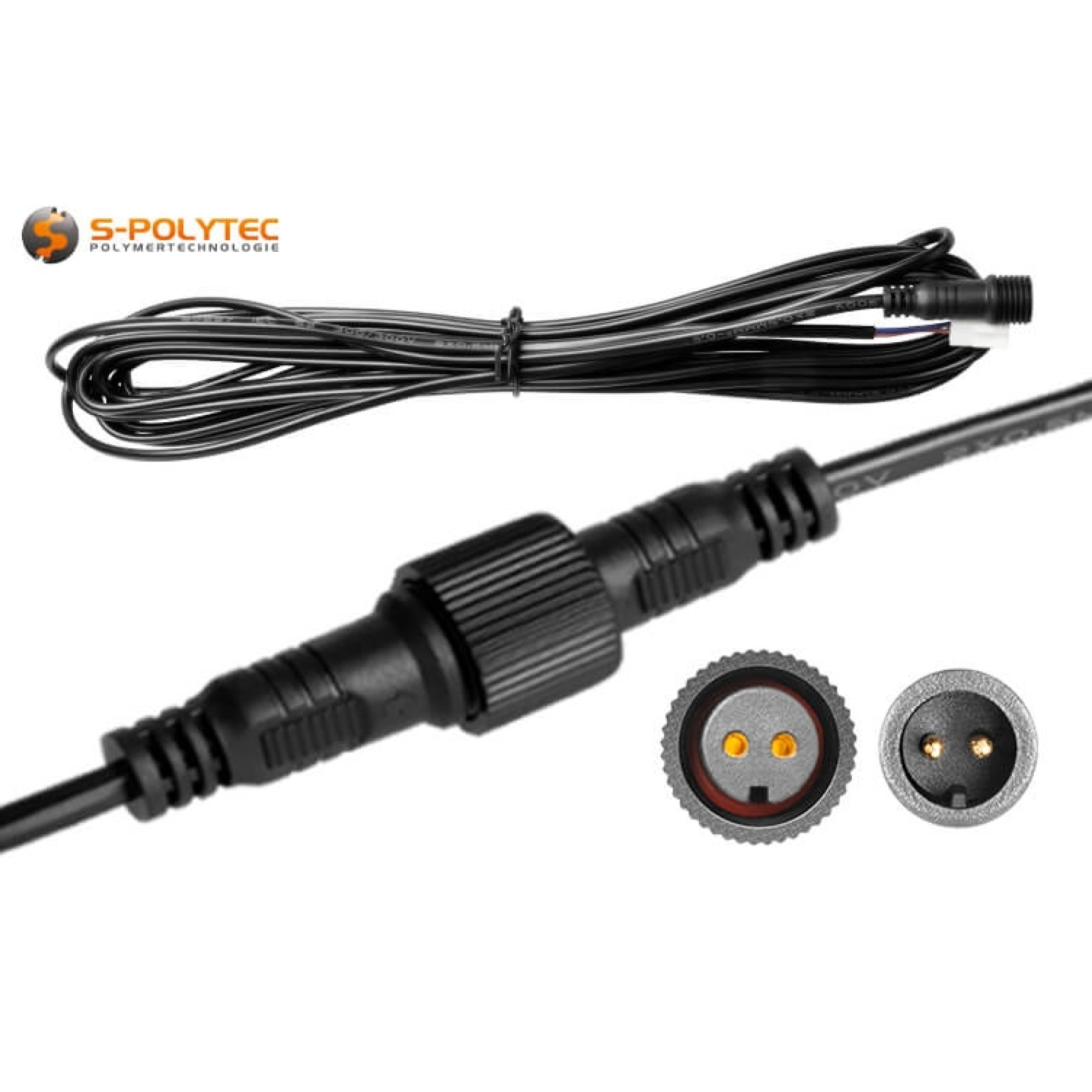

After drilling the holes, lay the connection cable from the LED spotlight to the power controller. The small white 2-pin plug must be laid in the direction of the power controller, as this is plugged into the HUB. Despite the cable's robust protective sheathing, care must be taken to ensure that it is not routed over sharp edges or stretched too tightly in order to avoid damage. If the standard length of 5 metres is not sufficient, the cable can be extended by a further 5 metres on the side with the screw-on plug contact for the LED spotlight using an optionally available extension cable.

3. Connecting the LED spotlights
After laying the cables, the LED spotlights are connected by plugging the short connection cable into the extension cable – an notch prevents incorrect plugging, which would cause the LED not to light up with direct current. Then the plastic screw connection is tightened by hand. This provides effective protection against dust and splash water, which is particularly important when used outdoors. The recessed spotlights are carefully inserted into the opening using the clamping brackets. The other end of the cable is then plugged into the HUB, where a pin also prevents the polarity from being reversed. This process is repeated for all spotlights until they are all connected and inserted.

4. Switch on the power and pair
Before plugging the mains plug into the designated socket, first insert the appropriate batteries into the remote control and keep it handy. As soon as the LED power controller is supplied with power, the lighting will start operating. Now, within five seconds of switching on, briefly press the mode button in the centre of the round brightness control on the remote control. This establishes the connection between the controller and the remote control. The lighting can then be conveniently switched on and off and the brightness adjusted by radio control.

Optional accessories to complement the complete recessed spotlight sets

• LED recessed spotlight DR-SP3W with 3W (3000K, warm white) incl. 5M connection cable
• 5M connection extension with sealed screw-on connectors
• 2.4 GHz wireless remote control as a second remote control with a range of 30 metres

WARNING:The LED recessed spotlights must only be connected to the LED power controller and the controller must only be connected to the power supply using the connection cables supplied or optional S-Polylight extension cables. Direct connection of the 12V spotlights to 230V AC voltage is not permitted and poses a significant safety risk. Failure to comply with this requirement may result in serious personal injury and property damage.

Data on the S-Polylight recessed spotlight DR-SP3W

• Product type: Recessed spotlight
• Material (housing): Aluminium (lacquered)
• Colour (housing): Black (RAL 9005)
• Shape housing: Round
• Diameter housing: 36mm
• Mounting type: Installation (with clamping brackets)
• Installation diameter: 28mm
• Installation depth: 29mm
• Protection class: IP65 (Dust and splash-proof)
• Performance: 3W per single spot
• Colour temperature: 3000 Kelvin (warm white)
• Brightness: 190 Lumens per single spot
• Dimmable: Yes (Controller and remote control included)
• CRI: > 80
• Energy-efficiency class: G

Daten zum S-Polylight Power-Controller DR-CON36W

• Product type: Power-Controller
• Material (houding): PVC
• Colour (housing): White/ black
• Housing dimensions (Controller): 187mmx40mmx25mm
• Housing dimensions (HUB): 70mmx30mmx25mm
• Mains power connection: Euro plug (900mm length)
• LED spot connection: 2-pole plug
• Input voltage: 85 Volt - 265 Volt AC
• Output voltage: 12 Volt DC
• Protection class: IP44 (Solid-state and splash protected)
• Number of spots: Varies (max. 12 Spots)
• Performance: 12W / 18W / 24W / 30W / 36W
• Frequency range: 2.4GHz (Remote control included)
