Outdoor LED-spotlight-set white (6000K, cool white)

Set of white recessed LED spotlights with remote control

Cool light colour (6000K) ✓ White aluminium housing ✓ Protection class IP65 ✓

The S-Polylight LED recessed spotlight complete set in white combines modern design with sophisticated technology and high-quality materials. Depending on the version, sets are available with 4, 6, 8, 10 or 12 mini spotlights – providing the perfect solution for any lighting situation. Each set includes a compact LED power controller with integrated dimmer and radio receiver, a handy radio remote control and all the necessary connection cables. The spotlights themselves impress with their slim design, with an outer diameter of just 36millimetres, and a robust housing made of powder-coated aluminium in elegant white. With an installation diameter of only 28 mm and an installation depth of 29mm, the MINI LED spotlights can be installed even in very confined spaces. They emit a clear, cool white light with 6000 Kelvin, which is very close to natural daylight and provides fresh, unadulterated illumination. With 3 watts of power and 190 lumens per spotlight, they produce a powerful brightness that can be individually adjusted by remote control. Thanks to their IP65 protection rating, the recessed spotlights are ideal for protected outdoor areas – such as patio roofs or house entrances – as well as for damp rooms such as bathrooms or kitchens.

Complete set means: The matching Ø28mm bi-metal hole saw is also included!

The S-Polylight LED recessed spotlights are supplied as a well-designed complete set that already contains all the components required for effortless installation. Thanks to the practical plug-in systems, wiring is a breeze – no specialist knowledge required. For convenient control, a modern 2.4 GHz wireless remote control is included in the scope of delivery, which has an impressive range of up to 30 metres. This allows you to not only switch the lighting on and off, but also dim it. Whether you want subtle accent lighting for relaxed evenings outdoors or clear, bright illumination for your kitchen, living area or home office – with the remote control, the right lighting atmosphere is always just a touch of a button away.

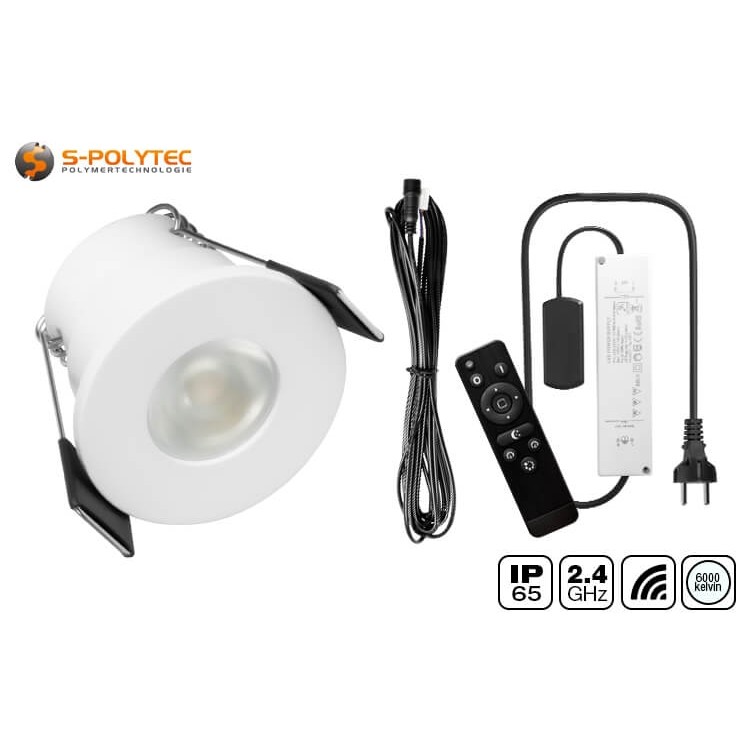

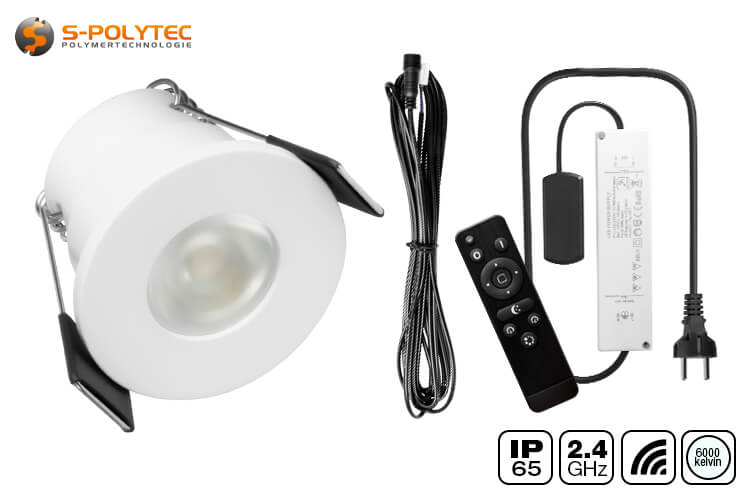

Scope of delivery of the complete recessed spotlight set

• LED recessed spotlight DR-SP3K in white with 12V/3W (6000K, cool white)
• 5M connection cables with pre-assembled connectors
• 12V LED power controller for up to 12 recessed spotlights
• 2. 4GHz wireless remote control for convenient control
• Ø28mm bi-metal hole saw for aluminium, wood and plasterboard

NOTE: The set size defines the number of LED recessed spotlights and their 5M connection cables.

Features of our outdoor LED lighting in white

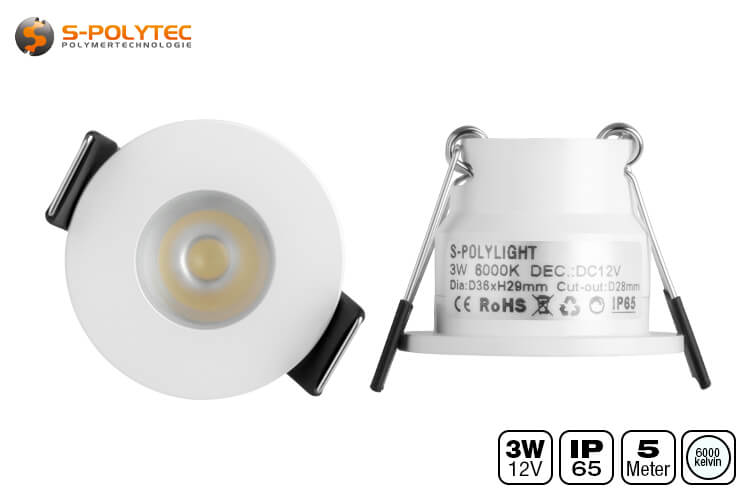

The white mini LED spotlights from our own brand S-Polylight transform any environment into a bright, modern lighting ambience. With an outer diameter of just 36mm, they blend inconspicuously into ceilings, shelves or furniture without detracting from the feel of the room. They are ideal for open-plan living spaces, kitchen islands, lofts or as subtle accent lighting behind TV cabinets or display cases. Outdoors, they also add stylish accents to patio roofs, balconies, entrance areas or along walkways. The robust clamping brackets ensure a secure hold, even in tight spaces, thanks to a 28mm installation diameter and 29mm depth. Each individual spotlight delivers 3 watts of power and 190 lumens of bright, cool white light at 6000 Kelvin, which resembles daylight and offers natural colour rendering. Thanks to their IP65 protection class, the spotlights are also suitable for bathroom areas or mirror lighting, where they are reliably protected against dust and splashing water. The brightness can be conveniently adjusted using the remote control, allowing you to flexibly switch between bright working light and atmospheric accent lighting. Installing the mini spotlights is extremely easy and can be done completely without tools. The pre-assembled connection cables are connected directly to the hub of the LED power controller using practical screw connectors. The housing is made of high-quality aluminium and has a UV-resistant powder coating, so it retains its elegant appearance even in direct sunlight or adverse weather conditions. The system thus combines easy installation, durability and stylish design in one.

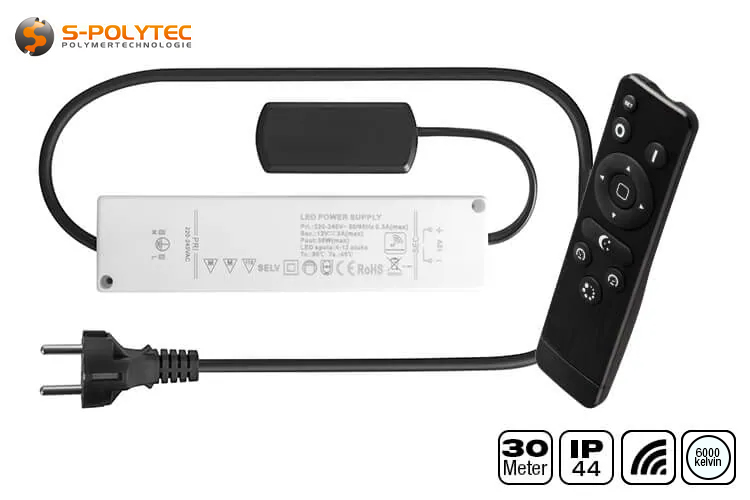

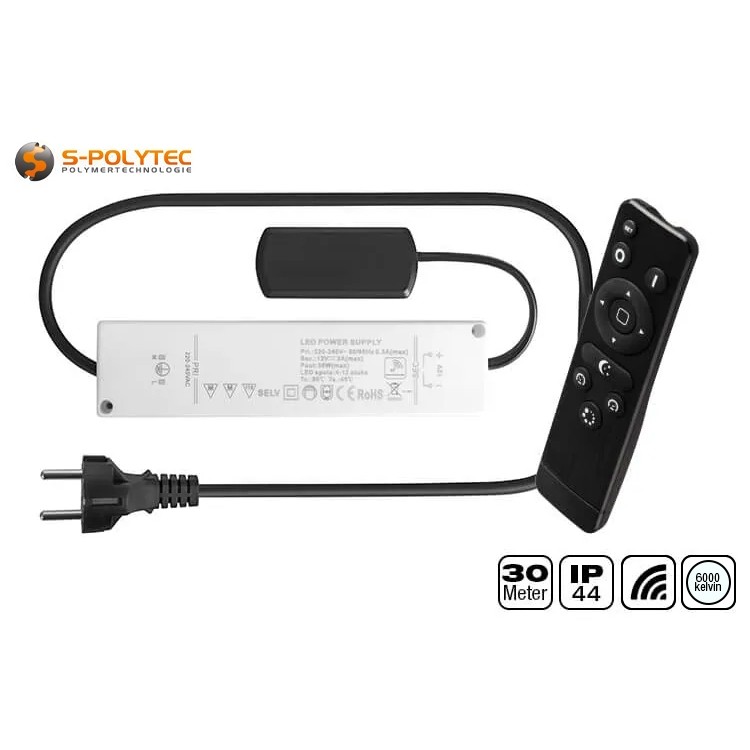

The S-Polylight LED Power Controller DR-CON36W is the control centre of our complete sets – it not only ensures a reliable power supply to the mini LED spotlights, but also controls them via the radio remote control. Externally, it is a compact 12-volt power supply with a permanently connected Euro plug that can be plugged directly into any standard socket. Inside, there is an integrated dimmer and a 2.4 GHz radio receiver. A permanently wired hub with twelve slots, which can be used to connect up to twelve LED spotlights, supplies the small lamps with 3 watts each, up to a total output of 36 watts. To ensure that installation is successful even with a controller without a master in electrical engineering, the appropriate connection cables are already included in the scope of delivery. Each cable is five metres long and has a 2-pin plug for the hub and a practical screw-in plug contact for the spotlight. This allows the spotlights to be conveniently positioned even at greater distances from the power controller. For even more flexibility, optional 5-metre extension cables are available, which can be easily inserted between the spotlight and the connection cable.

The set includes a compact 2.4 GHz wireless remote control that allows convenient control of the LED lighting via the power controller. It not only allows you to switch the lights on and off, but also to dim the brightness in 10 or 20 per cent increments and offers direct selection buttons for various preset lighting moods. Thanks to modern radio technology, no line of sight to the controller is required – the remote control works reliably even through walls, from a distance of up to 30 metres. The black, shock-resistant ABS housing fits comfortably in the hand, while rubberised buttons ensure pleasant operation. On the back is a practical battery compartment that holds two 1.5-volt AAA batteries (not included).

The LED recessed spotlights require a cut-out with a diameter of 28mm so that they can be installed and securely fixed in the mounting openings using spring clips. To ensure that the cut-outs do not pose an obstacle, each complete set comes with a high-quality bi-metal hole saw free of charge. Thanks to its alternating teeth, the hole saw is suitable for numerous materials such as wood, plastic, light metal, plasterboard, HPL or aluminium composite panels. A precisely ground HSS centring drill bit ensures exact positioning of the cut-outs. The ejector spring attached to the drill bit facilitates the removal of drill cuttings, while the stable triangular shank enables secure mounting in all common cordless screwdrivers.

Advantages of our white LED sets in cool white

• The white housing of the LED spotlights blends inconspicuously into white ceilings, walls and canopies
• No tools or specialist knowledge are required to connect the pre-assembled connection cables
• With a light colour of 6000K, the LEDs provide colour-accurate, neutral light without a blue tint
• The LED power controller combines the 12V power supply, radio receiver and dimmer in a single housing
• A wireless remote control with a range of up to 30 metres ensures maximum ease of use
• The white powder coating on the aluminium casings is UV-resistant and does not yellow
• The white LED recessed spotlights for outdoor use comply with protection class IP65

Installation and connection of white recessed spotlights

The LED lighting can be installed in just three simple steps. All necessary components are included in the set, including the 28mm hole saw, so installation can begin immediately upon delivery. A cordless screwdriver and two 1.5-volt AAA batteries for the remote control should be available.

1. Drilling the mounting holes
To install the recessed spotlights, first determine the desired positions and drill the holes. It is important to ensure that the installation depth is at least 29mm and that the connection cables can be easily routed to the power controller later on. For the round cut-outs with a diameter of 28mm, each LED complete set comes with a high-quality bi-metal hole saw that can be easily clamped into any standard cordless screwdriver with a standard drill chuck. The ground centring drill bit ensures precise drilling. This makes installation quick, clean and professional – perfect for modern interiors and stylish outdoor areas.

2. Wiring the spotlights

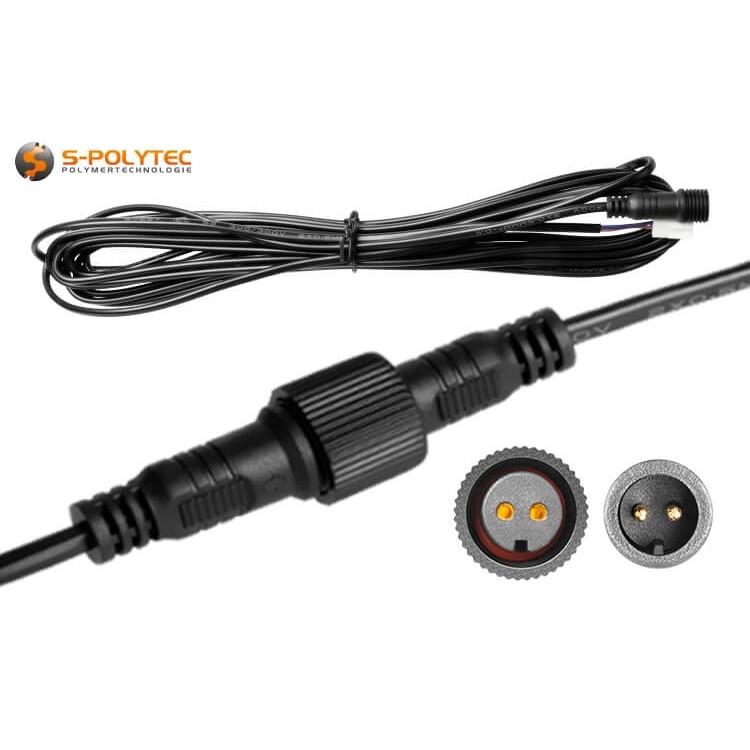

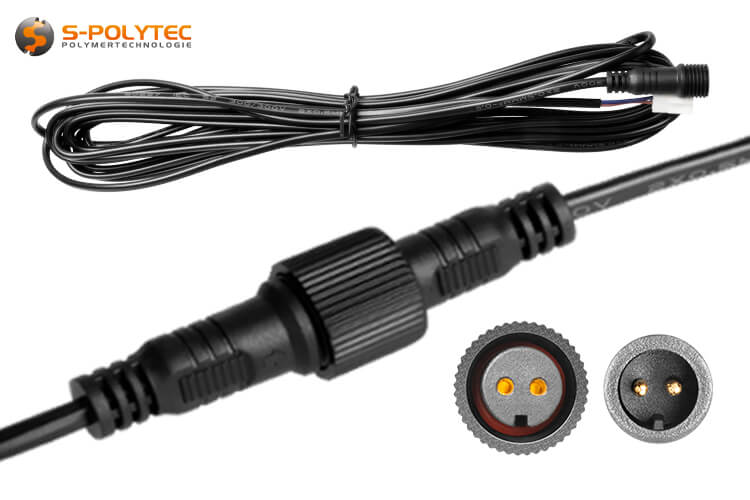

The wiring of the LED spotlights begins with laying the connection cable to the power controller's hub. It is important that the white 2-pin plug is later connected to the controller and not to the spotlight, as this is the only way it can be plugged into the hub. Although the cable has a protective sheath, it should not be routed over sharp edges or stretched too tightly. The screw connection on the spotlight is then connected. A small notch ensures that the correct polarity is guaranteed. Then tighten the plastic screw connection by hand to create a tight, secure connection that provides reliable protection against dust and splashing water, even outdoors. Now the spotlight can be inserted into the opening. To do this, carefully bend the clamping brackets together and guide them through the opening. But be careful! Due to the high spring tension, there is a risk of pinching your fingers. Once the process has been repeated for all spotlights, the white plugs can be inserted into a slot on the power controller hub, completing the electrical installation. If the 5-metre connection cable is too short, the cable can be easily extended by a further 5 metres using an optional extension cable via the spotlight's screw contact.

3. Coupling the controller
Before pairing, the remote control must be powered by inserting the batteries. Then plug the power plug, which is connected directly to the power controller, into the designated socket, which will cause the LED spots to light up. The controller is now in pairing mode for 5 seconds. During this time, the small round mode button in the centre of the control circuit for the dimming function must be pressed. If several controllers – for example, if there are more than 12 recessed spotlights – are to be controlled with one and the same remote control, all controllers must be powered at approximately the same time and the mode button must be held down, as the controllers are paired one after the other.

Optional accessories to complement the complete recessed spotlight sets

• LED recessed spotlight DR-SP3K with 3W (6000K, cool white) incl. 5M connection cable
• SmartHome Controller DR-HOME36W with extensive smart home functions
• 5M connection extension with sealed screw-on connectors
• 2. 4GHz wireless remote control as a second remote control with a range of 30 metres

WARNING:Only the supplied connection cables and optionally available S-Polylight connection extensions may be used for connection. Furthermore, connection is only permitted to the S-Polylight power supply unit type DN-CON36W (included in the set) or type DN-HOME36W with SmartHome functions. Other 12-volt power supply units may impair the functions of the LED spotlights. Direct connection to the 230V mains supply is prohibited and poses a significant risk of damage to property and personal injury.

Data on the S-Polylight recessed spotlight DR-SP3K

• Product type: Recessed spotlight
• Material (housing): Aluminium (lacquered)
• Coloour (housing): White
• Shape housing: Round
• Diameter housing: 36mm
• Mounting type: Installation (with clamping brackets)
• Installation diameter: 28mm
• Installation depth: 29mm
• Protection class: IP65 (dust and splash-proof)
• Performance: 3W per single spot
• Colour temperature: 6000 Kelvin (cold white)
• Brightness: 190 lumens per single spot
• Dimmable: Yes (controller and remote control included
• CRI: >80
• Energy-efficiency class: G

Data on the S-Polylight Power Controller DR-CON36W

• Product type: Power controller
• Material (housing): PVC
• Coloour (housing): White/black
• Dimensions housing (Controller): 187mmx40mmx25mm
• Housing dimensions (HUB): 70mmx30mmx25mm
• Mains power connection: Euro plug (900mm length)
• LED-spot connection: 2-pin plug
• Input voltage: 85 Volt-265 Volt AC
• Output voltage: 12 Volt DC
• Protection class: IP44 (solid and splash-proof)
• Number of spots: Varies (max. 12 Spots)
• Performance: 12W/18W/24W/30W/36W
• Frequency range: 2.4GHz (remote control included)
