SmartHome outdoor LED spotlights, anthracite, set (6000K, cool white)

Outdoor LED spotlights in anthracite in the SmartHome complete set

Cool white LEDs ✓ Compatible with Alexa™ ✓ Housing in RAL7016 ✓

The S-Polylight outdoor LED spotlight set in anthracite gives living and outdoor areas a clear, modern lighting concept. Available in versions with 4, 6, 8, 10 or 12 recessed spotlights, it combines high-quality materials with smart technology. The compact housings are made of robust aluminium and feature a durable powder coating in anthracite grey (RAL 7016), combining elegance and durability. With protection class IP65, the spotlights are protected against dust and splash water, making them suitable for use in the living room or bathroom as well as under the carport or patio roof. The colour temperature of 6000K provides a clear, daylight-like light colour that renders colours realistically and makes rooms appear more open and spacious. Whether as work lighting in the kitchen, garage or workshop, in the bathroom or for modern illumination of the patio and garden – this set creates effective highlights in any environment. The scope of delivery includes not only the recessed spotlights, but also the matching SmartHome controller, all connection cables and a handy wireless remote control. Installation is straightforward and tool-free, as all cables are already equipped with screw and plug-in systems – simply connect and it is ready for immediate use. With an outer diameter of only 36mm, an installation depth of 29mm and an installation diameter of 28mm, the spotlights blend inconspicuously into ceilings, furniture or canopies, creating a subtle, elegant light pattern.

The 28mm bi-metal hole saw is included FREE OF CHARGE so you can get started right away!

Thanks to its integrated Wi-Fi module, the SmartHome controller offers versatile control options that make this lighting set so special. It connects directly to your smartphone via a Tuya-compatible app, allowing you to control the LED spotlights via your mobile device or voice assistants such as Alexa™ and Google Assistant™. Functions such as stepless dimming, automatic switching on and off, and setting up schedules can be used conveniently, creating a modern, flexible SmartHome experience.

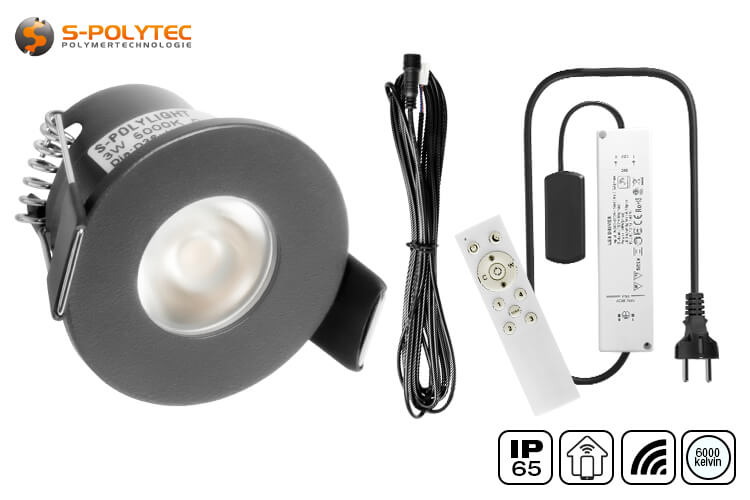

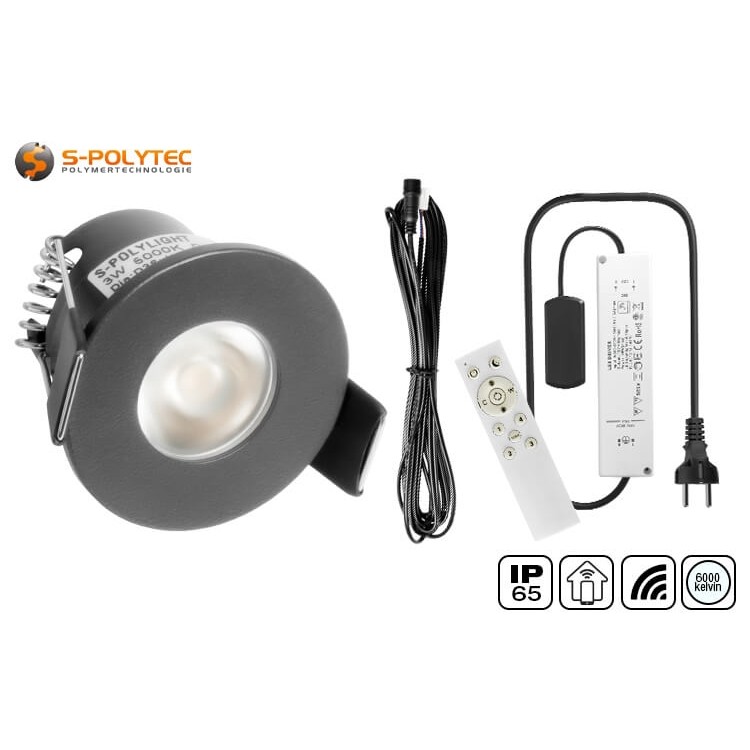

Scope of delivery of the complete recessed spotlight set

• LED recessed spotlights DR-SP3K 12V 3W (6000K, cool white) in anthracite
• 5M connection cables with pre-assembled plugs
• 12V LED Smart Home Controller for up to 12 LED spotlights DR-SP3
• 2.4GHz wireless remote control for controlling the lighting
• Ø28 mm bi-metal hole saw with centring drill bit

Features of the SmartHome LED set in cool white

The mini LED recessed spotlights in anthracite with 3 watts of power bring modern lighting to outdoor areas and create a clear, daylight-like atmosphere. With 6000K cool white and 230 lumens, they bathe patio roofs, carports or walkways in bright, neutral light that elegantly highlights structures while creating a stylish atmosphere for convivial evenings outdoors. Thanks to their compact dimensions of 36mm outer diameter, 28mm installation diameter and 29mm installation depth, the spotlights can be discreetly integrated into ceiling substructures, patio roof constructions or as pavement lighting. The anthracite-coloured aluminium housing has a modern, high-quality look and matches the colour of the aluminium profiles of our patio roofs in RAL7016 perfectly. The IP65 protection class ensures that the spotlights are reliably protected against dust and splash water and can be operated safely even in rain or humid air. Two sturdy clamping brackets with high spring tension ensure a reliable hold, while the 5-metre-long connection cable with sealed screw connection enables quick, tool-free installation.

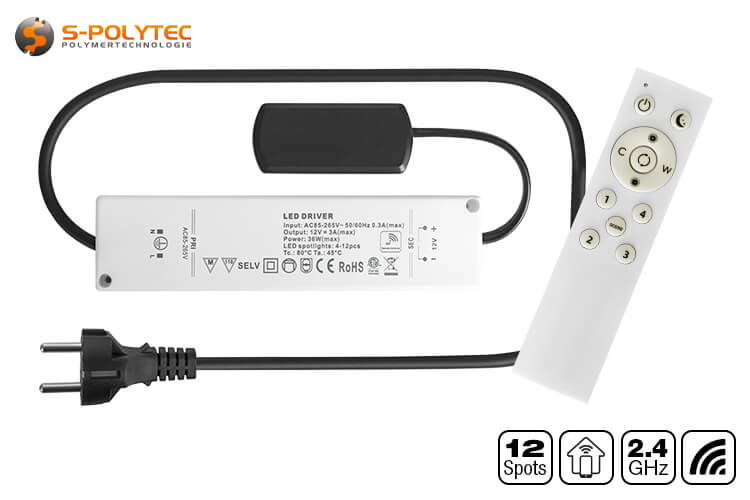

The S-Polylight LED Power Controller DR-HOME36W makes modern lighting control more innovative than ever before. This compact device combines a power supply unit and SmartHome control and supplies up to 12 LED recessed spotlights from the DR-SP3W (warm white, 3000K) or DR-SP3K (cool white, 6000K) series with 12 volts and a total output of 36 watts. The permanently integrated 90cm long power cable with Euro plug is plugged directly into the socket, while a compact HUB with twelve slots ensures easy connection of the spots. The connection cables can be plugged in securely and without tools – quickly, cleanly and reliably. Operation is also flexible and convenient. The integrated dimmer allows for continuous adjustment of the brightness, either via the supplied remote control or via a Tuya-compatible app. Thanks to the built-in WiFi module, the controller can be fully integrated into the SmartHome: switching on and off, time control or group switching can be operated via smartphone – or with additional skill via voice command with Amazon Alexa™ and Google Home™. Thanks to its slim design, the system disappears almost invisibly into cavities, behind covers or in the false ceiling. This keeps the technology in the background, while the result is impressive. Tidy design without any annoying cabling in the field of vision.

The set includes a compact 4-channel radio remote control that can be used to control up to four light groups independently of each other – both for dimming and for switching on and off. This requires the use of separate DR-HOME36W SmartHome controllers (the DR-CON36W LED power controller is not supported). Thanks to the 2.4 GHz radio technology used, transmission works even without a direct line of sight to the controller, so that control can be reliably carried out even through walls or across several rooms. This means that the controller can be easily concealed, for example in a false ceiling or behind a panel. The remote control is made of white ABS plastic, has a slim design and fits comfortably in the hand. Soft, rubberised buttons ensure comfortable operation. On the back is a battery compartment for two AAA batteries, each with 1.5 volts (not included).

The free hole saw is made of high-quality bi-metal, with saw teeth that alternate between pointing slightly inwards and outwards. This contributes to a very clean cut. It does not matter whether the material is plasterboard, wood, plastic or light metal. With a diameter of 28mm, the saw is perfectly matched to the installation dimensions of the compact recessed spotlights. A 6mm thick HSS drill bit with a profile-ground design ensures perfect centring. If necessary, this can also be easily replaced with a drill bit suitable for the material. The hole saw fits into any chuck of cordless screwdrivers and drills. The solid triangular shank ensures a secure hold in the drill chuck.

Advantages of our grey LED complete sets with DR-HOME36W

• The Ø36mm LED spotlights in anthracite are ideal as elegant accent lighting in outdoor areas or living spaces
• Pre-assembled cables enable quick and tool-free connection to the controller hub
• The matching 28mm bi-metal hole saw ensures precise cuts in wood, aluminium and plasterboard
• The SmartHome controller controls up to 12 spots and can be conveniently operated via app or voice command
• Up to four lighting groups can be controlled separately thanks to the 4-channel wireless remote control
• The solid aluminium housing with anthracite powder coating combines durability with an elegant appearance
• Splash-proof and dust-proof MINI LED spotlights are perfect for outdoor use

Installation and connection of outdoor recessed spotlights in anthracite

Installation and wiring are particularly easy and require neither electrical expertise nor special tools. All you need to install the LED lighting is a cordless screwdriver to drill the holes with the included hole saw, two 1.5 V AAA batteries for the remote control and a little time. The connection is made using simple screw or plug connections. To start up the LED SmartHome controller and use the SmartHome functions, it must be paired with a smartphone or tablet via a Tuya-compatible app, ideally Smart Life, with the existing Wi-Fi network.

1. Drilling the mounting holes
Holes with a diameter of 28mm are required to install the spotlights. The bi-metal hole saw supplied enables clean cut-outs and, thanks to its progressive alternating teeth, is suitable for wood-based materials, aluminium and drywall. The small recessed spotlights are then inserted through these openings and securely fixed in the wall and ceiling thanks to the clamping brackets with their high spring tension.

2. Wiring the spotlights

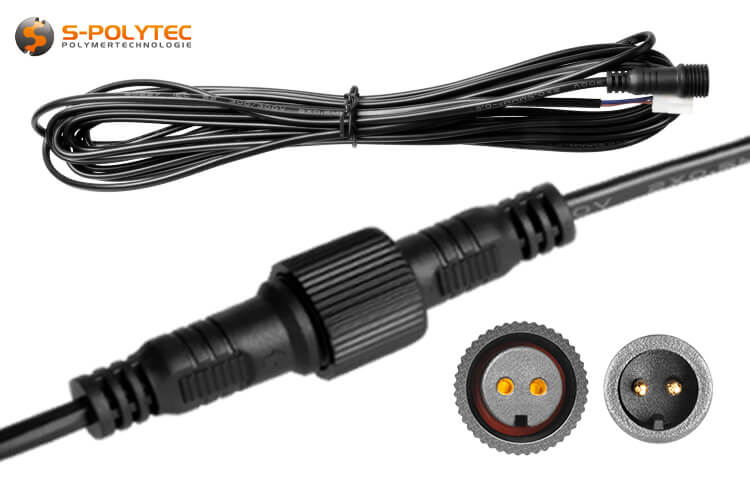

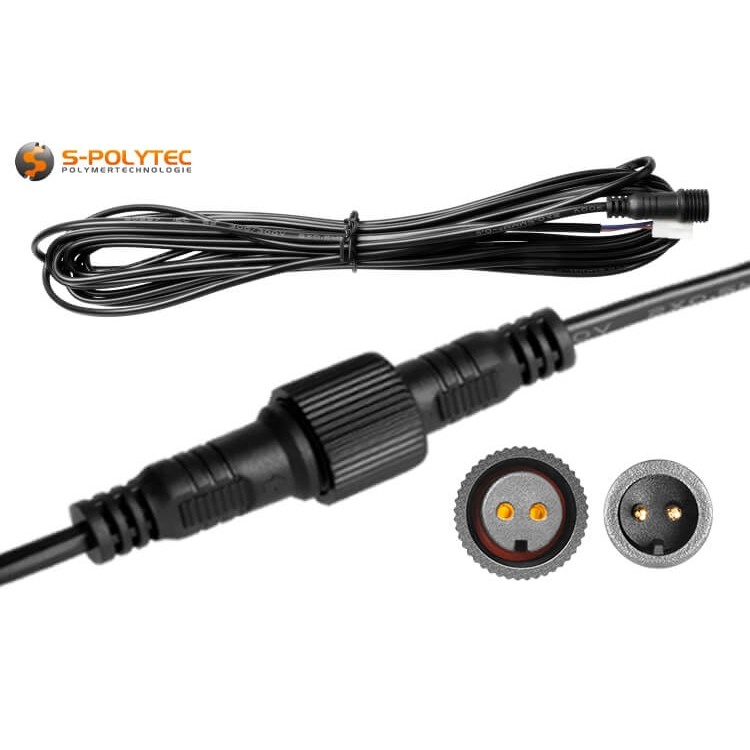

After drilling, the pre-assembled connection cables can be laid through the openings to the controller. One is needed for each individual recessed spotlight. When laying the cables, care should be taken to ensure that they are not stretched too tightly or pulled over sharp edges to prevent damage to the insulation. If the enclosed 5-metre cable is not long enough, it can be extended by a further 5 metres with an optional connection extension. The round plug is inserted into the coupling of the LED spotlight, with a notch ensuring the polarity required for direct current. The screw connection is fitted with a rubber seal that provides reliable protection against dust and splash water. When inserted, the clamping brackets with high spring tension ensure a secure hold in the mounting opening. Finally, the small white plugs are each inserted into one of the 12 slots on the HUB on the LED SmartHome controller. The special plug shape prevents it from being inserted the wrong way round, because, as mentioned above, it is important to observe the polarity.

3. Pairing the controller
To prepare the LED SmartHome controller for pairing, the power supply must first be interrupted by briefly disconnecting and reconnecting the mains plug five times. If the connected LED spotlights flash, the controller is in pairing mode. The free app Smart Life app from Volcano Technologiesis suitable for configuration with a smartphone (Available for Android™ and iOS™). It is easy to use, is updated regularly and, when combined with the appropriate skills, can also be controlled via voice assistants such as Alexa&trade or Google&trade Home. Tap on ‘Add device’ or ‘+’ in the app, select ‘Lamp’ and start the automatic pairing mode. Then select the desired Wi-Fi network, enter the corresponding password and establish the connection. The controller will now be automatically recognised and integrated. Alternatively, other Tuya-compatible apps can be used, whereby the respective steps of the app must be followed. The 4-channel wireless remote control can only be paired once the controller has successfully connected to the Wi-Fi. As long as the controller is still in pairing mode after connecting to the app, which is indicated by the LEDs flashing, press and hold the desired channel button (1–4) on the remote control until the LEDs light up briefly. The LED lighting can now be controlled via both the smartphone and the remote control.

Optional accessories for expanding the complete recessed spotlight sets

• LED recessed spotlight DR-SP3K with 3W (6000K, cool white) incl. 5M connection cable
• LED recessed spotlight DR-SP3W with 3W (3000K, warm white) incl. 5M connection cable
• 5M connection extension with sealed screw-on connectors

WARNING:Only S-Polylight Power Controllers DR-HOME36 with SmartHome function or DR-CON36 and the supplied connection cables or optional connection extensions may be used to connect the LED spotlights.

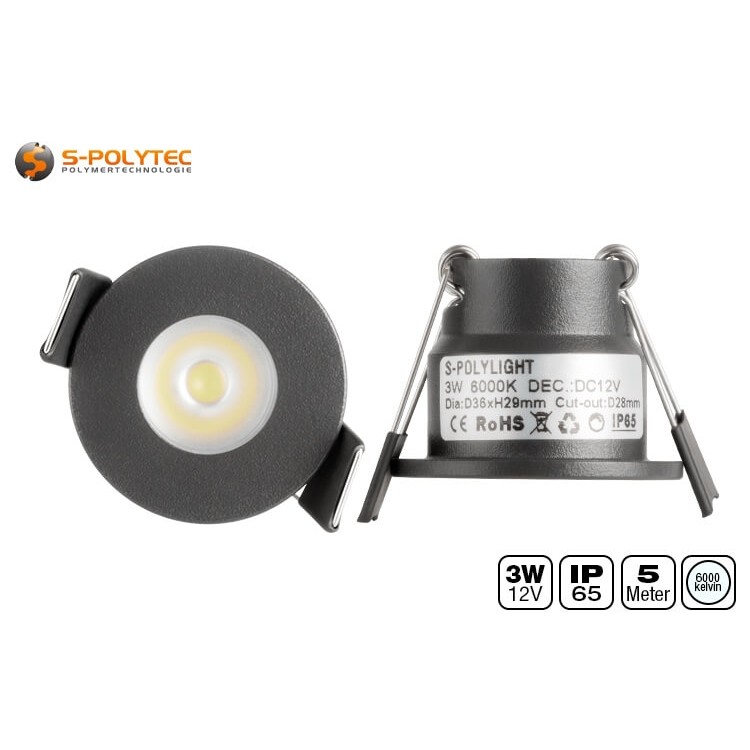

Data on the S-Polylight recessed spotlight DR-SP3K

• Product type: Recessed spotlight
• Material (housing): Aluminium (lacquered)
• Colour (housing): Anthracite
• Shape housing: Round
• Diameter Housing: 36mm
• Mounting type: Installation (with clamping brackets)
• Installation diameter: 28mm
• Installation depth: 29mm
• Protection class: IP65 (dust and splash-proof)
• Performance: 3W per single spot
• Colour temperature: 6000 Kelvin (cold white)
• Brightness: 190 lumens per single spot
• Dimmable: Yes (controller and remote control included)
• CRI: >80
• Energy-efficiency class: G

Data on the S-Polylight SmartHome Controller DR-HOME36W

• Product type: Power-Controller
• Material (housing): PVC
• Colour (housing): White/white
• Housing dimensions (controller): 187mmx40mmx25mm
• Housing dimensions (HUB): 70mmx30mmx25mm
• Mains power connection: Euro plug (900mm length)
• LED spot connection: 2-pole plug
• Input voltage: 85 Volt-265 Volt AC
• Output voltage: 12 Volt DC
• Protection class: IP44 (solid and splash-protected)
• Number of spots: Varies (max. 12 spots)
• Performance: 12W/18W/24W/30W/36W
• Frequency range: 2.4GHz (Remote control included)
• SmartHome-compatible: Yes (Tuya APP required)
• Voice assistant: Yes (Amazon™ Alexa™, Google™ Assistant, etc)
