SmartHome outdoor LED spotlights, white, set (3000K, warm white)

Outdoor LED spotlights in white in a complete set with SmartHome controller

Warm white light (3000K) ✓ Controllable with Amazon™ Alexa™ & Google™ Assistant ✓ Point protection ✓

Our S-Polylight outdoor LED recessed spotlight set in white with SmartHome functions for modern lighting concepts contains a choice of 4, 6, 8, 10 or 12 mini LED recessed spotlights, an LED SmartHome controller, a wireless remote control and all the connection cables required for operation. All cabling is carried out using pre-assembled plug connections without the need for tools. The controller supplies up to 12 spots and offers flexible control options via remote control, smartphone or voice command, such as dimming, time control and group switching. Of course, the lighting can also be switched on and off manually using a conventional light switch. The set brightness is retained. The high-quality mini spotlights with white powder-coated aluminium housings are extremely compact and, with a diameter of only 36mm and a drilling diameter of 28mm, can be discreetly integrated into ceilings, furniture or canopies. The warm white (3000 Kelvin) spotlights with a single output of 3 watts are also ideal for damp rooms and outdoor areas thanks to IP65 protection and sealed screw connections.

FREE GIFT FROM US! The Ø28mm bi-metal hole saw required for installation is included FREE with every set!

Experience modern lighting at the highest level – with our smart mini LED recessed spotlight sets with extensive SmartHome functions. The LED SmartHome controller is easily connected to your existing Wi-Fi via the free ‘Smart Life’ app. You can then conveniently switch the lighting on and off or dim it using your smartphone. For even more convenience, the set includes a 4-channel remote control that can be paired with the controller. With Amazon Alexa™ or Google Assistant™, everything also works via voice control – for maximum convenience and the latest smart home experiences.

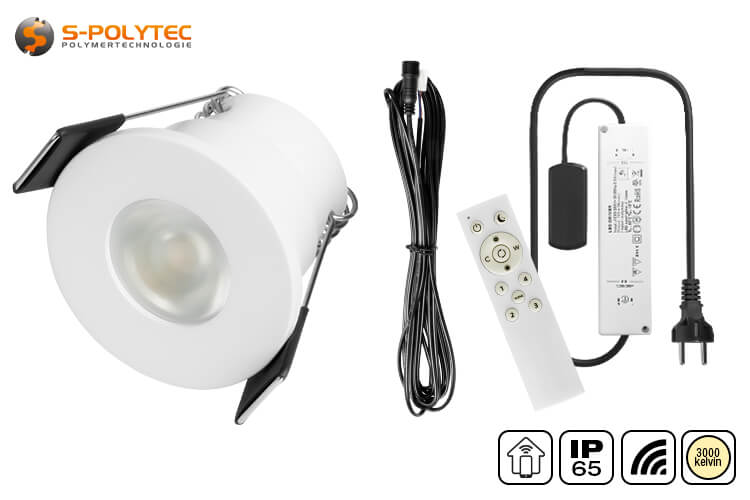

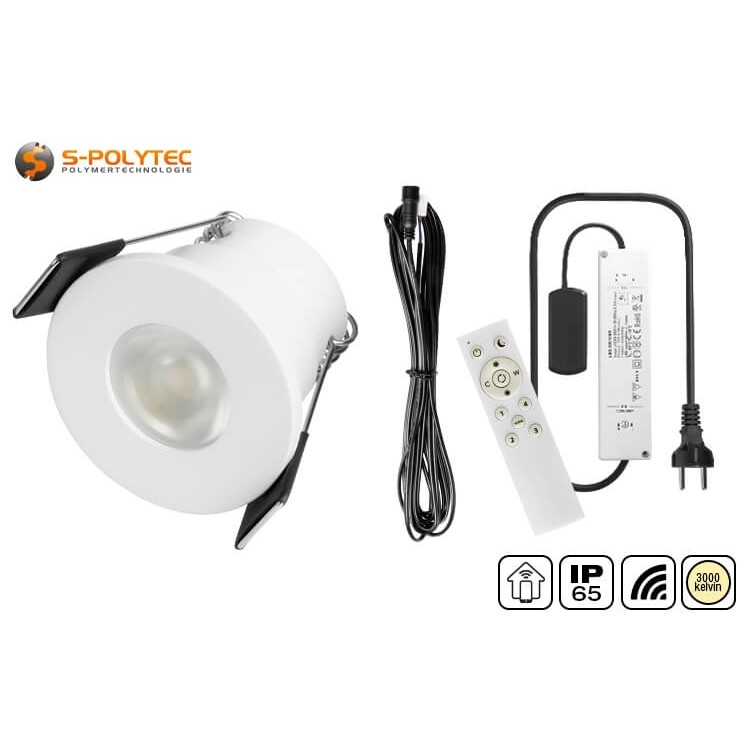

Scope of delivery of the complete recessed spotlight set

• LED recessed spotlight DR-SP3W Made of aluminium in white with 3 watts of power (3000K, warm white)
• 5M connection cables With pre-assembled plugs for easy connection
• 12V LED Smart Home Controller For connecting up to 12 LED spots DR-SP3W
• 2.4 GHz wireless remote control For simple, convenient lighting control
• Ø 28mm Bi-Metall Hole saw For drilling holes in aluminium, wood and plasterboard

NOTE: The LED recessed spotlights with white lacquered aluminium housing and 5-metre connection cables included in the set correspond in number to the selected set size. The sets can be expanded as required with connection extensions or additional individual spotlights.

Features of our SmartHome LED lighting in white

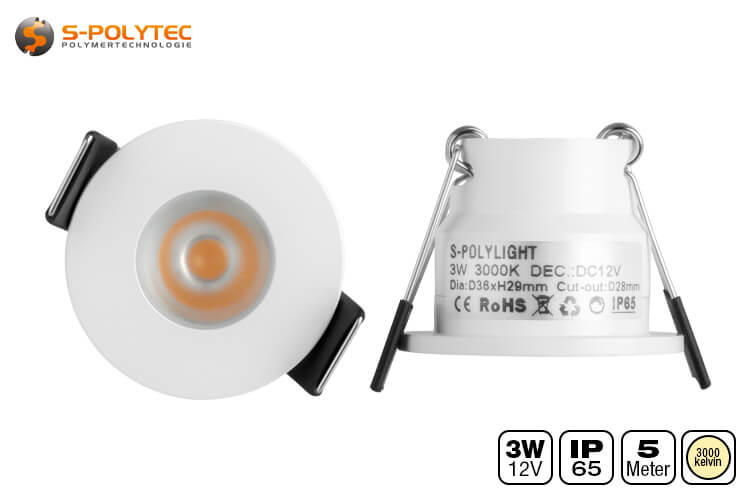

Our mini LED recessed spotlights live up to their name. Mini in size. Maxi in effect! With an outer diameter of only 36mm, a hole diameter of 28mm and an extremely low installation depth of 26mm, they are perfect for confined installation conditions, such as under patio roofs or in furniture. The white powder-coated housing made of solid aluminium blends discreetly and modernly into almost any environment. Thanks to protection class IP65, our spotlights are reliably protected against dust and splash water and are therefore ideally equipped for demanding outdoor locations. The permanently integrated 5050 SMD LEDs in warm white (3000 Kelvin) provide atmospheric lighting with 3 watts of power and a brightness of 190 lumens, which can be dimmed as required to create a cosier atmosphere. Whether as lighting above the kitchen worktop, in the wardrobe or as stylish accent lighting in outdoor areas – these compact spotlights put your ideas in the right light. Two strong clamping brackets with high spring tension and a 5-metre connection cable with sealed screw connection ensure safe and uncomplicated installation.

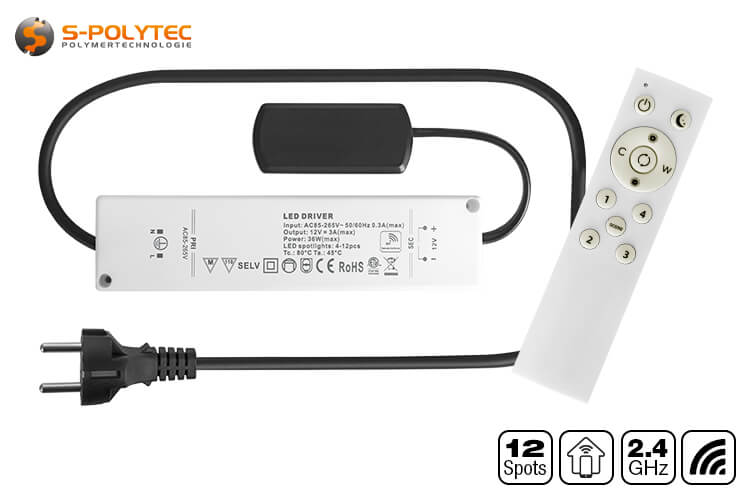

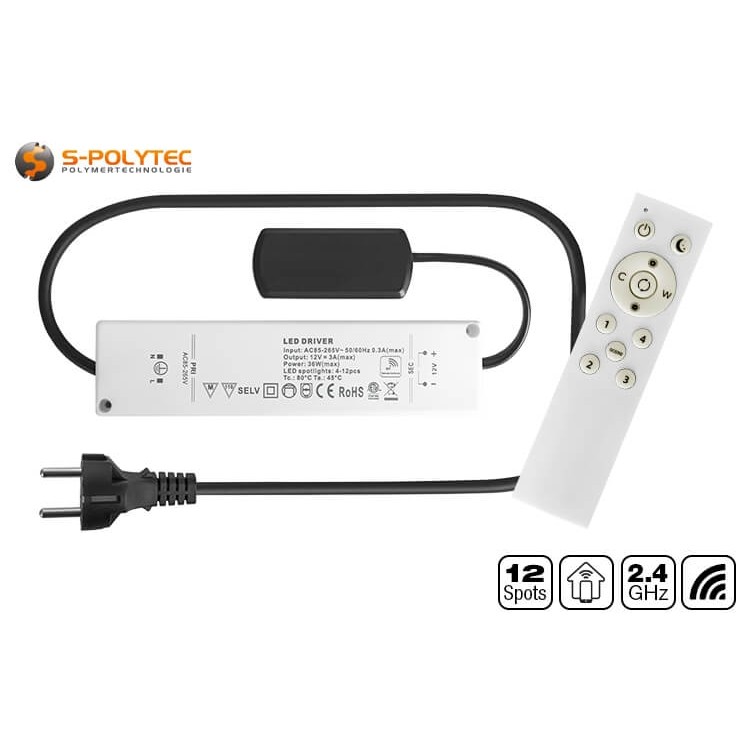

The innovative S-Polylight LED SmartHome Controller DR-HOME36W is much more than just a power supply unit. It reliably supplies up to 12 DR-SP3W LED recessed spotlights with 12 volts and a total output of up to 36 watts. But the device offers even more functions. Thanks to the integrated electronic dimmer and the 2.4 GHz radio receiver, the dimmable recessed spotlights can be conveniently switched on and off or adjusted continuously in brightness using the supplied radio remote control. In addition, the controller offers SmartHome functions, as the free Smart Life app (for iOS and Android) allows you to conveniently control the lighting via your smartphone, offering a wide range of additional options such as time-controlled switching on and off. Voice control via Amazon Alexa™ or Google Home™ is also possible – simply activate the Smart Life skill and you can control the lights using voice commands. The power supply unit is equipped with a 90cm long power cable with a Euro plug that plugs directly into the socket. A compact HUB with twelve separate slots is integrated for connecting the individual spots – each suitable for one LED spot. The hub is also permanently connected to the power supply via a short connection cable. Thanks to the slim design of the power supply and hub, the entire system can be discreetly installed in cavities, drywall or suspended ceilings – thus completely preserving the modern, tidy appearance of your lighting without the wiring detracting from the look..

The scope of delivery includes a 4-channel wireless remote control that allows you to dim and switch on and off up to four lighting groups. Thanks to the wireless connection, the remote control works even without direct visual contact with the SmartHome controller – even across several rooms. The white ABS plastic housing fits comfortably in the hand, and the rubberised buttons ensure comfortable operation. The battery compartment for two 1.5V AAA batteries, which are not included in the scope of delivery, is located on the back.

NOTE: The 4-channel wireless remote control is only for controlling LED SmartHome controllers. The DR-CON36W LED power controllers without SmartHome function aren't compatible.

As a gift from us with every SmartHome LED set, a precisely fitting 28mm bi-metal hole saw is included in the scope of delivery, which is specially manufactured for our DR-SP3W mini recessed spotlights. It enables clean drilling in materials such as plasterboard, MDF, OSB, HPL or aluminium. The ground HSS centring drill bit ensures precise placement and can be quickly replaced if necessary. Thanks to the stable triangular mount, the saw sits securely in the drill chuck and is compatible with any standard cordless screwdriver.

Advantages of our white LED complete sets with DR-HOME36W

• The LED spotlights in timeless white blend beautifully into white ceilings and cornices
• Connecting the spotlights to the controller is very easy thanks to pre-made plug connections
• For installation, we will provide you with the appropriate bi-metal hole saw with a 28mm hole circle diameter
• The SmartHome-compatible LED power controller can supply power to and control up to 12 spotlights
• A 2.4 GHz wireless remote control with a range of 30 metres is included in the scope of delivery
• The LED recessed spotlights have a solid aluminium housing with white powder coating
• Thanks to their IP65 protection rating, MINI LED spotlights are suitable for outdoor use and damp locations

Installation and connection of outdoor recessed spotlights in white

Easy installation – no specialist knowledge required – that is our promise! Installing our LED recessed spotlights is straightforward and can be done easily even by amateurs. No prior knowledge of electrical installation is required. A standard cordless screwdriver is all you need to drill the appropriate holes using the 28mm hole saw supplied. The electrical connection is made without tools using practical screw or plug connections, which makes installation particularly quick and user-friendly. To operate the LED SmartHome controller, simply use an app – we recommend connectingSmart Life –to the existing Wi-Fi network on the smartphone. This allows you to conveniently control the smart LED lighting via your smartphone. In addition, the 4-channel wireless remote control included in the set can be paired with the controller for even greater flexibility. But it gets even smarter! By integrating Smart Life Skills into Amazon Alexa™ or Google Assistant™, the lighting can even be operated by voice control – for a real smart home feeling.

1. Drilling the mounting holes
Before the LED spotlights can be installed, the appropriate holes must be drilled in the desired locations. To do this, the positions are first marked. As a special extra, we include a high-quality bi-metal hole saw with every LED lighting set free of charge. Thanks to its sturdy triangular shank, it can be easily inserted into any standard cordless screwdriver. The sharp centring drill bit made of HSS steel ensures that the holes can be drilled precisely and without much effort in materials such as aluminium, plasterboard, wood or plastic. This means that the spotlights can be easily installed in aluminium patio roofs, in wooden cladding on dormers or in ceilings and walls indoors – for example, in drywall constructions. Thanks to their IP65 protection class, the small white spotlights are even suitable for damp rooms such as bathrooms or guest WCs, where they provide atmospheric lighting with their pleasant warm white light.

2. Laying the connection cables

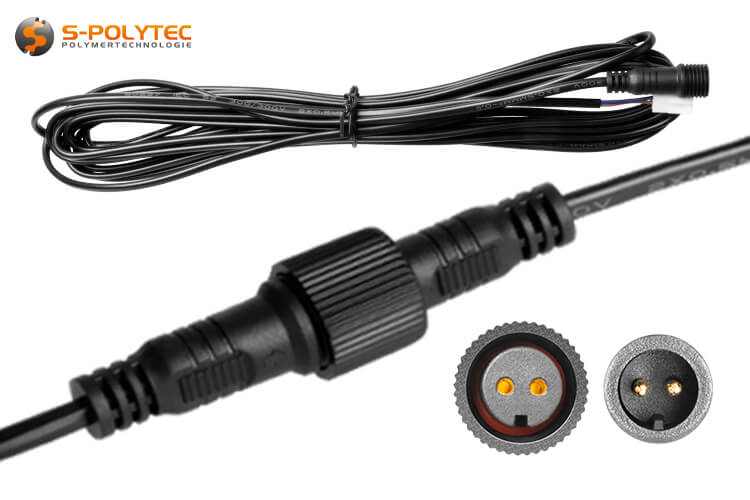

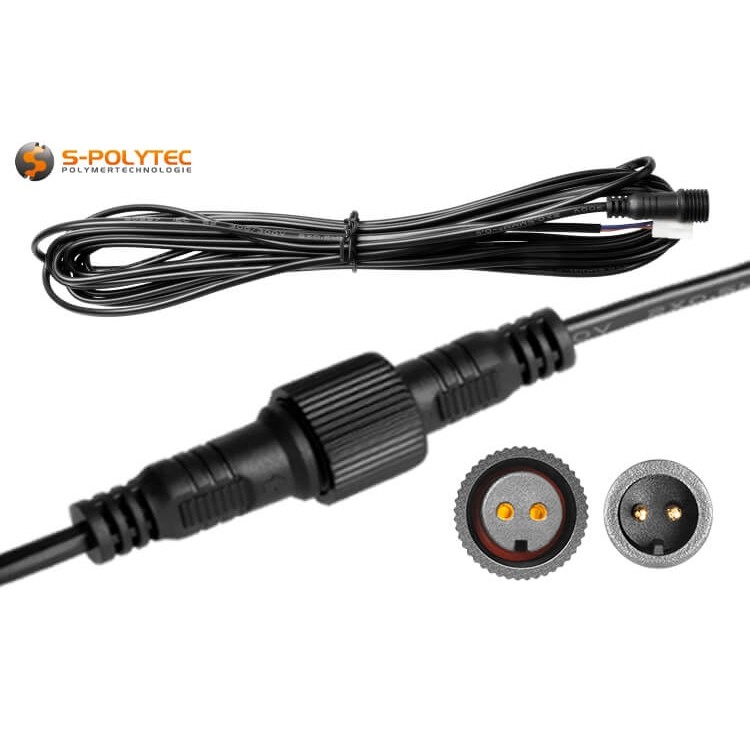

Once all the cut-outs for the recessed spotlights have been prepared, the connection cables can be laid. These are already fitted with the appropriate plug connections at both ends. The black, round plug with screw cap is connected directly to the respective LED spotlight and screwed tight to create a secure and protected connection. The smaller, white plug is later inserted into the hub of the LED power controller. First, the cable is fed through the opening of the recessed spotlight and laid to the position of the controller. If the standard length of five metres is not sufficient, the connection can be extended by a further five metres with an optional extension cable. This is simply inserted between the LED spotlight and the existing connection cable and securely connected with screw plug connections. When laying the cables, make sure that they are not routed over sharp edges or laid under tension to avoid damage to the insulation. Each recessed spotlight requires its own cable to the controller. The number of connection cables supplied therefore always corresponds to the number of LED spotlights included in the set.

3. Connecting the LED spotlights
Once all the connection cables have been laid, it is time to connect the power supply. Each LED spotlight is connected individually. To do this, the round plug on the spotlight must be inserted into the coupling on the connection cable. A small notch automatically ensures that the correct polarity is maintained – this is particularly important with direct current. The connection is then tightened with the screw cap. A rubber seal reliably protects the screw connection from dust and splash water. When inserting the spotlights care must be taken not to pinch your fingers, as the two retaining brackets have a strong spring force to ensure that the spotlight sits securely in the hole later on. The brackets must be turned away from the LED body towards the cable and at the same time carefully guided through the mounting hole. In the final step, all 2-pin plugs at the other end of the connection cable are connected to the LED SmartHome controller. These are simply plugged into the black HUB. The HUB has a total of 12 slots, 6 on each side. Each slot is used to connect a single LED spotlight. The special shape of the plugs prevents incorrect insertion. Once all the recessed spotlights included in the set are connected, the cabling is complete.

4. Pairing with your smartphone
To put the LED SmartHome controller into pairing mode, interrupt the power supply by unplugging and replugging the power cord five times in succession. The connected LED spotlights will flash to indicate pairing mode. To pair with your smartphone, we recommend the free ‘Smart Life’ app from Volcano Technologies (for Android™ and iOS™). This app is user-friendly, regularly updated and can be connected to popular voice assistants such as Alexa™ or Google&trade Home. Open the app, select ‘Add Device’ or the ‘+’ icon, and then select ‘Lamp’ as the device category. Select the automatic connection mode and connect to the Wi-Fi network. Select the correct Wi-Fi network and enter the password. The controller will then automatically connect to the app. There are also many other apps that are compatible with Tuya. Simply follow the installation instructions in the app, which may vary slightly depending on the app. If necessary, read the manual or contact the developer.

5. Pairing the wireless remote control
Once the controller has been successfully connected to the app and the Wi-Fi, it remains in pairing mode for a short time, which is indicated by the flashing LEDs. During this phase, the 4-channel wireless remote control can be connected very easily: press and hold the desired channel button (1, 2, 3 or 4) until the LEDs briefly light up brightly. That is it – the remote control is now ready for use and you can conveniently control the lighting.

NOTE: The 4-channel radio remote control is only for controlling LED SmartHome controllers. The DR-CON36W LED power controllers without SmartHome function are not compatible.

Optional accessories for expanding the complete recessed spotlight sets

• LED recessed spotlight DR-SP3W with 3W (3000K, warm white) incl. 5M connection cable
• 5M connection extension with sealed screw-on connectors

WARNING: The recessed spotlights may only be wired using the original connection cables or optionally available extension cables. Direct connection of the 12-volt recessed spotlights to the 230-volt mains power supply poses a risk of death. The supplied S-Polylight Power Controller DR-HOME36W (alternatively DR-CON36W without SmartHome function) must be used, otherwise the function of the LED spotlights may be impaired.

Data on the S-Polylight recessed spotlight DR-SP3W

• Product type: Recessed spotlight
• Material (housing): Aluminium (lacquered)
• Colour (housing): White
• Housing shape Round
• Housing diameter: 36mm
• Mounting type: Installation (with clamping brackets)
• Installation diameter: 28mm
• Installation depth: 29mm
• Protection class: IP65 (dust and splash proof)
• Performance: 3W per individual spotlight
• Colour temperature: 3000 Kelvin (warm white)
• Brightness: 190 lumens per individual spot
• Dimmable: Yes (controller and remote control included)
• CRI: 80
• Energy efficiency class: G

Data on the S-Polylight SmartHome Controller DR-HOME36W

• Product type: Power controller
• Material (housing): PVC
• Colour (Housing): White / black
• Housing dimensions (controller): 187mmx40mmx25mm
• Housing dimensions (HUB): 70mmx30mmx25mm
• Mains power connection: Euro plug (900mm long)
• Connection LED spotlight: 2-pin plug
• Input voltage: 85 Volt-265 Volt AC
• Output voltage: 12 Volt DC
• Protection class: IP44 (Solid state and splash-proof)
• Number of spots: Varies (max. 12 spots)
• Performance: 12W/18W/24W/30W/36W
• Frequency range: 2.4GHz (Remote control included)
• SmartHome-compatible: Yes (Tuya APP required)
• Language assistance: Yes (Amazon™ Alexa™, Google™ Assistant, etc)
