Acrylic glass yellow laser cut

Configure individual laser parts made of weatherproof acrylic glass in yellow at a reasonable price. Available in 3mm thickness up to 1500mm length and 980mm width. The sheets are transparent and have a very high the intensive yellow colouring, they have a very high light transmission of approx. 84%.

The item is in stock

Dispatch within 7 working days

  • Forms

+ Basic form Choose one of the available basic shapes.
All necessary input fields will be loaded based on your selection.

  • Rechteck als Laserform
  • Abgerundetes Rechteck als Laserform
  • Kreis als Laserform
  • Kreisring als Laserform
  • Ellipse als Laserform
  • Halbkreis als Laserform
  • Viertelkreis als Laserform
  • Octagon als Laserform
  • Trapez als Laserform
  • Dreieck als Laserform
  • Rechtwinkliges Dreieck als Laserform
  • Route als Laserform
  • Stern als Laserform
  • Polygon als Laserform
Your price €0.00 Incl. 19% Tax Weight: 0,0000kg

+ Drilling-hole Wählen Sie Größe, Abstand und Positionen für optionale Lochbohrungen aus.
Je nach gewählter Grundform stehen Ihnen unterschiedliche Varianten zur Verfügung.

  • No drilling-holes will be made
  • Drilling-holes centered on laser part
  • Drilling-holes centered on each side
  • Drilling-holes in every corner
  • Drilling-holes above and below
  • Drilling-holes left and right
  • Lochbohrungen an jeder Seite

without drilling-holes

No drilling-holes are placed on the laser part.

Your price €0.00 Incl. 19% Tax Weight: 0,0000kg

Configure acrylic glass yellow laser-cut online at low cost

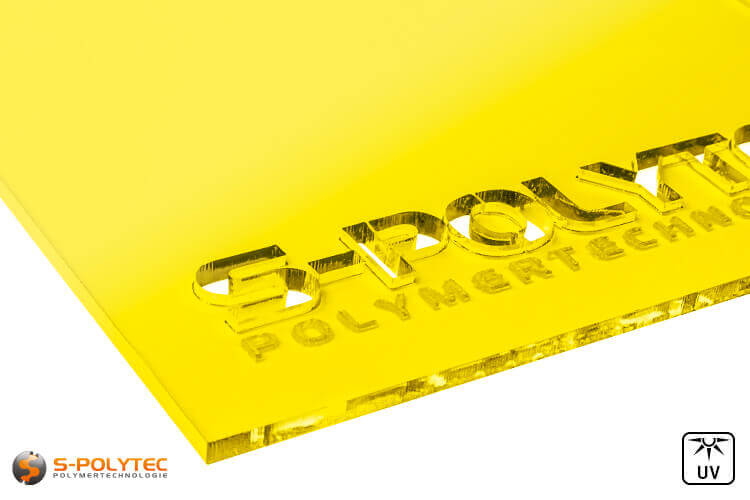

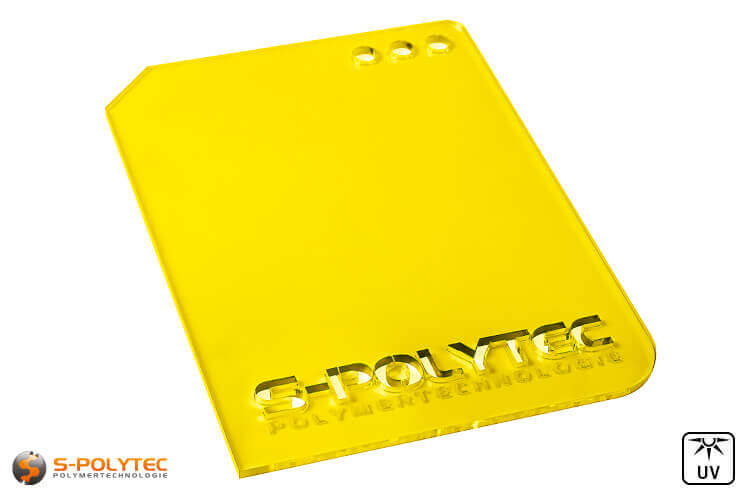

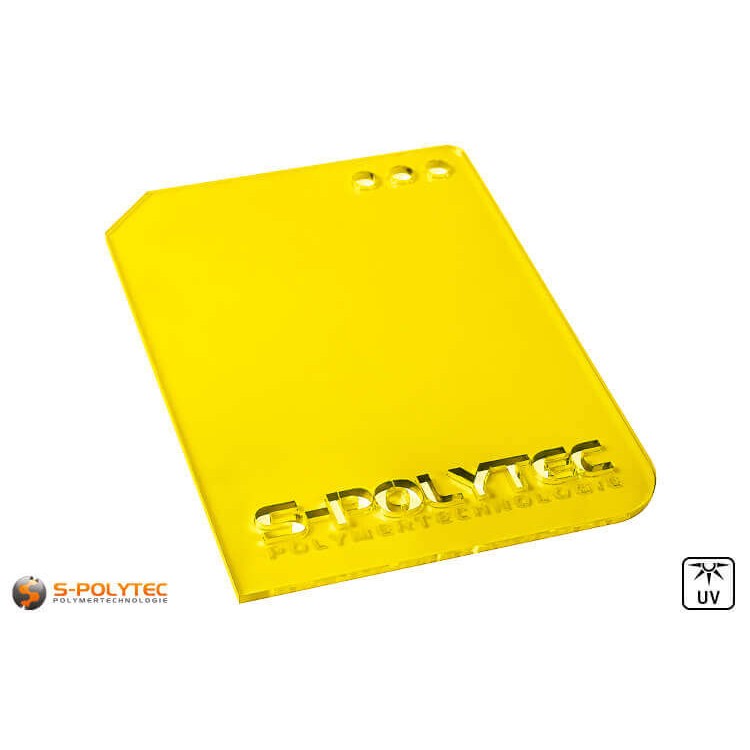

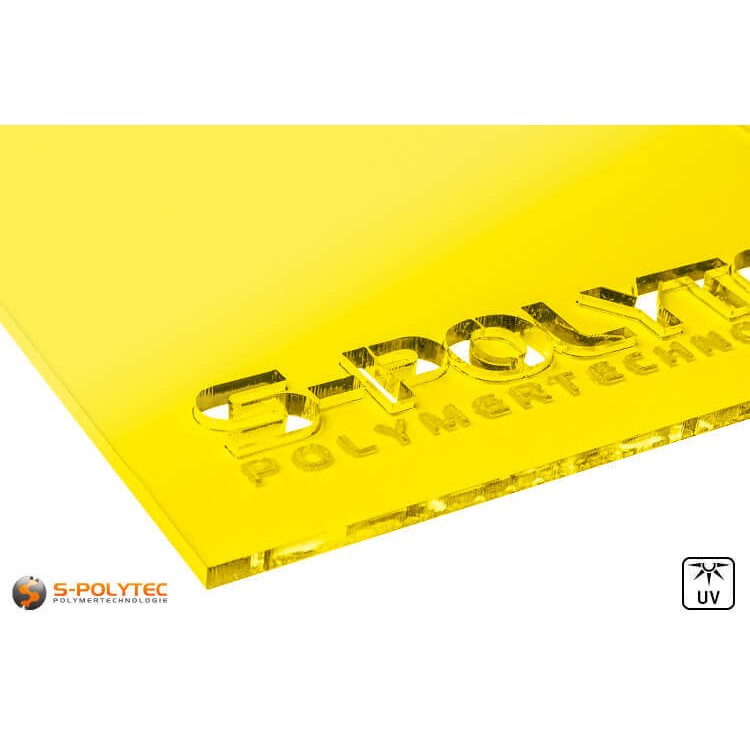

You can configure our yellow acrylic glass sheets online up to a maximum size of 1500mmx980mm easily and cheaply as individual laser parts. The acrylic glass in yellow is transparent and has a very high light transmission of 84% despite the strong, yellow colour. In order to guarantee you the best possible quality for your laser cuts, we only use high-quality cast acrylic glass sheets. Due to the special manufacturing process, the sheets have no internal stresses and are therefore much more suitable for laser cutting. Due to laser cutting, the cut edges are smooth and polished and are comparable to the glossy surface in terms of evenness and gloss level.

Our coloured acrylic sheets are all made of solid core material and are fully coloured throughout. This ensures that the cut edges and the surfaces have the same yellow colour. We do not use hollow core or double web sheets for our laser cut acrylic sheets in yellow tint.

NOTE: Our yellow acrylic sheets are transparent and have a protective film on both sides. This serves to protect the surfaces, but is not thermoformable and must therefore be removed for thermoforming.

Properties of the transparent acrylic glass in yellow

By adding yellow colour pigments, transparent acrylic glass becomes a transparent, yellow plastic sheet with the same properties as the colourless version. The coloured sheets in sunny yellow have very good UV and weather resistance. As weatherproof sheets, the yellow plastic sheets are suitable for permanent outdoor use without any problems and can be used at temperatures ranging from -40°C to +80°C. The natural UV resistance of PMMA prevents the colour from fading even in prolonged sunlight, so that you will enjoy the strong colouring for many years. PMMA is the abbreviation for the chemical name polymethyl methacrylate. However, acrylic glass is almost only called this in the plastics industry. For most people, this plastic is probably known as Plexiglas. However, Plexiglas® is merely a brand name of Röhm GmbH for acrylic glass, but is not infrequently used in common parlance as a term for transparent plastic sheets.

Acrylic glass has a very hard surface and is therefore relatively insensitive to scratches. For the same reason, PMMA is also relatively brittle, which means that the sheets break more quickly than less hard plastic sheets when hit or knocked. In direct comparison with normal glass, however, the impact resistance is 8-10 times higher, which is why transparent acrylic glass is very often used as a plastic sheet. These properties also apply to yellow acrylic glass, but due to its intense colour, it is less likely to be used as a plastic glass substitute.

Despite the intense yellow tint of our acrylic sheets, a still very high light transmission of about 84% is achieved. This makes the coloured sheets perfect for large-format corporate advertising, e.g. in the form of illuminated letters on company buildings. The translucent sheets are also frequently used for colourful advertising stands, for example for new products, or for printed matter. Yellow acrylic is also very popular for engraved door signs, lampshades and lighting elements. Intense yellow acrylic glass is also excellent as coloured shelves in display cabinets and furniture, optionally with lighting.

  • Acrylic glass in yellow is weatherproof, UV and weather-resistant and suitable for indoor and outdoor applications
  • Yellow acrylic glass is scratch-resistant compared to other plastics thanks to its hard surface
  • Yellow acrylic glass has 8 to 10 times the impact strength of real glass in the same format
  • Acrylic glass in yellow can be used at permanent temperatures between -40°C to +80°C
  • Acrylic glass in yellow has a very high light transmission of approx. 84% despite its intense colour
  • Acrylic glass in yellow has an even and consistent pigmentation in sunny yellow
  • Acrylic glass in yellow is classified as normally combustible according to DIN 4102 B2 and UL94 HB

Advantages of laser cut transparent acrylic in yellow

In contrast to conventional rectangle cutting on our panel saws, individual laser parts in almost any shape are possible with our laser part configurator. Based on the most common basic shapes, e.g. circles, rings, ellipses, triangles, rectangles, routes, polygons, you can conveniently and easily create round, rectangular, square or triangular acrylic glass blanks online. Thanks to a wide range of configuration options, the basic shapes can be adapted entirely to your needs. Even drill holes for screwing the laser parts are placed with little effort. To make configuration as easy as possible for you, our true-to-scale real-time preview is available, which reacts immediately to changes so that you always have full control over your laser cuts of yellow acrylic glass. The dynamic price calculation also reacts in real time and always determines the best possible price for your configuration. Discounts for higher quantities or larger formats are deducted directly from the price, depending on the total weight.

The very favourable prices are possible because laser cuts can be carried out almost completely automatically with the laser part configurator. After receiving your order, your laser part is converted into a special file format and sent directly to our lasers. All our production staff have to do is place the yellow acrylic sheet and start the laser process. So you do not have to do without quality in terms of tolerances or material.

  • Acrylic laser parts in yellow are easy to configure online with our online configurator
  • Lower tolerances are possible with laser cutting than with conventional saw cutting
  • With laser cutting, the cut edges are not dull and saw-rough, but evenly smooth and shiny
  • In contrast to saw cutting, almost all shapes are possible with our laser part configurator
  • The greatest possible automation guarantees fast delivery times and favourable prices

NOTE: For the yellow acrylic sheets in laser cutting, the maximum size is 1500mmx980mm.

Post-processing of the acrylic laser cuts in yellow

Basically, you do not have to cut the sheets to size, because your laser cuts are lasered exactly according to your specifications. Basically, the yellow acrylic glass sheets are very easy to process and do not require any special knowledge or tools. Simple tools that are also used in woodworking, such as a jigsaw, circular saw or cordless screwdriver, are sufficient for cutting. When sawing, routing or drilling, make sure to set a medium speed and a medium feed rate so that the sawdust does not heat up too much and fuse with the cutting edge. For sawing, we recommend using a saw blade with medium coarse teeth. This ensures the smoothest possible cutting edge without chipping or splintering. For drilling, we recommend using an HSS drill for metals. To ensure that processing can be carried out without damaging the sheet by chipping or breaking, acrylic glass should always lie firmly on a flat, smooth surface and be fixed in place so that it cannot flutter.

TIP: On request, we can laser almost any shape from yellow-tinted acrylic glass according to your drawing. Precise, inexpensive and fast.

Deep-drawing is a widespread method for producing finished plastic parts such as bowls made of coloured acrylic glass. As a thermoplastic, PMMA is ideally suited for thermoforming and so the yellow plastic sheets can also be bent or bevelled very well. It is important here that the sheets are heated sufficiently, as acrylic glass can otherwise break quickly due to its brittleness. The ideal temperature range for thermoforming acrylic glass is between 150°C and 190°C. How long the sheets have to be heated depends on the selected thickness and the exact temperature used.

For bonding the yellow laser blanks made of transparent PMMA, we recommend our acrylic glass adhesive PMMAprofi. This is made possible by the use of cast acrylic glass. Extruded acrylic, on the other hand, has internal stresses due to the extrusion, which are released during laser cutting. This can lead to stress cracks when bonding with solvent-based adhesives.

  • Yellow acrylic glass is very easy to process by sawing, milling or drilling
  • Yellow acrylic glass can be excellently bonded with suitable adhesives
  • Yellow acrylic can be thermoformed at temperatures between 150°C and 190°C
  • Yellow acrylic glass can be screwed, e.g. with stainless steel wall brackets

WARNING: Laser parts made of transparent acrylic glass in yellow should not be cleaned with alcohol to avoid stress cracks.

Numbers, letters, logos and engravings on request

With our laser systems, almost no wish remains unfulfilled. We are not limited to the configuration options of our online shop, but can laser pretty much any shape you want and even add your individual laser engraving as text or graphics to the yellow acrylic sheets if you wish.

    Further possibilities of our CO2 laser system on request:

  1. Letters, numbers, lettering in radiant, intense yellow made from transparent acrylic
  2. From your design drawing in vector format to the finished laser part in yellow acrylic
  3. Cut-outs, hole drillings up to entire perforated plates in laser cut from yellow acrylic glass
  4. Individual laser engravings as text or graphics on the back, front or even both sides
  5. Laser parts from prototype to series production in highest precision made of acrylic glass in yellow
  6. and much more

Our consulting team is at your disposal if you have any questions about the possibilities with our CO2 laser systems. Simply give us a call or send us a short e-mail. We will answer as soon as possible.

Plexiglas® is a registered brand name of Röhm GmbH.

Additional Information

Additional Information

Standart Length1520
Standard width1010
Delivery TimeDispatch within 7 working days
UV resistanceUV resistant
Color accuracyColor similar to RAL color system
