Aluminum composite panels brushed 3mm

Aluminum composite panels brushed 3mm
€0.00

Incl. 19% Tax

€0.00 / pc.
Weight: 0 kg

Aluminium composite panels aluminium bruched covered both sides with a protective film. To calculate the prices, enter the length and the width in the corresponding cells under this text in mm. Please note that our cutting configurator calculates the prices depending on the quantity and your cutting. A small change in the cut can lead to strong price changes. Try yourself 510x500mm and 505x496mm.

Delivery Time: Dispatch within 2-3 working days

min 30 mm, max 2000mm
Please, enter a valid number
min 30 mm, max 1000mm
Please, enter a valid number
OR
Description

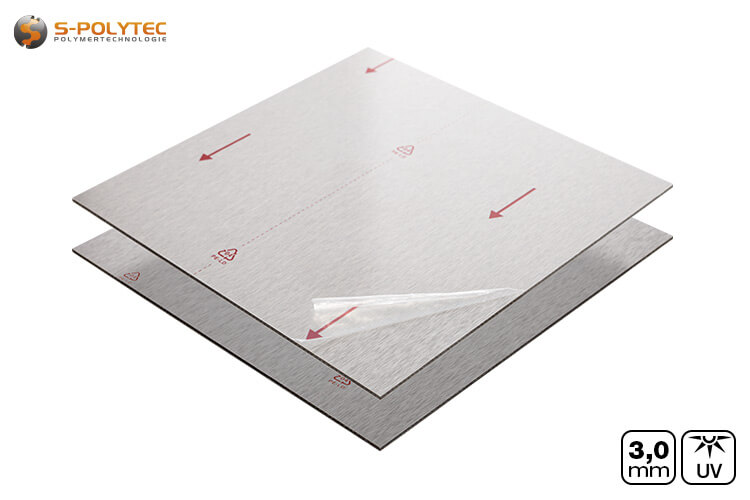

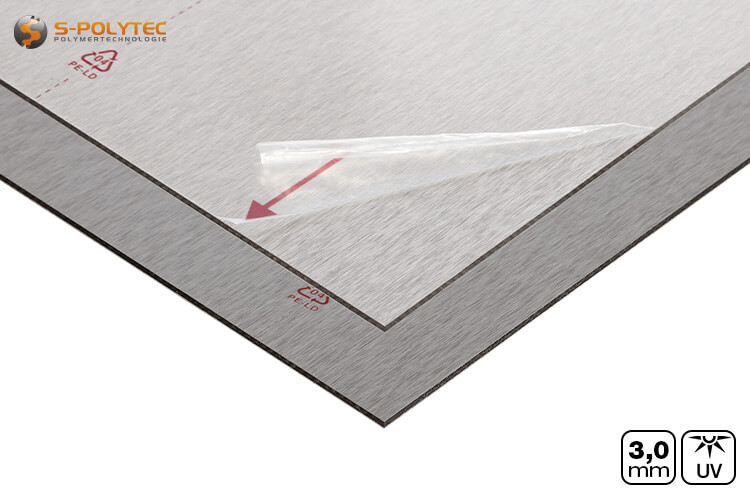

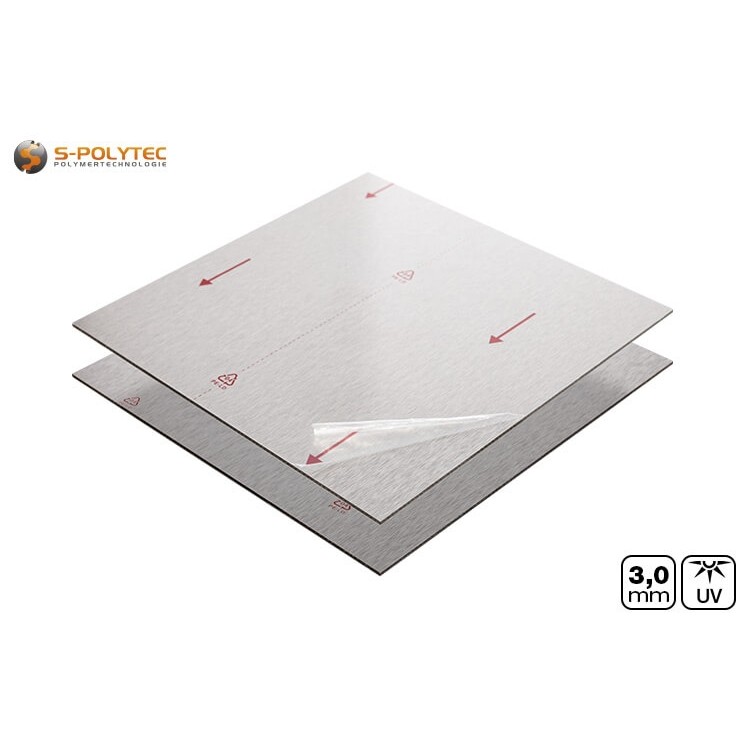

3mm aluminum composite panels in a beautiful brushed aluminum look, the backsite is in silver. Our aluminum composite panels have protective film on both sides.

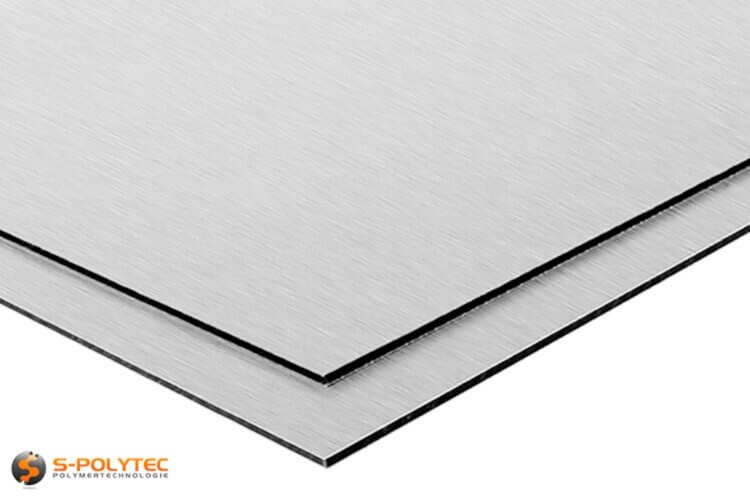

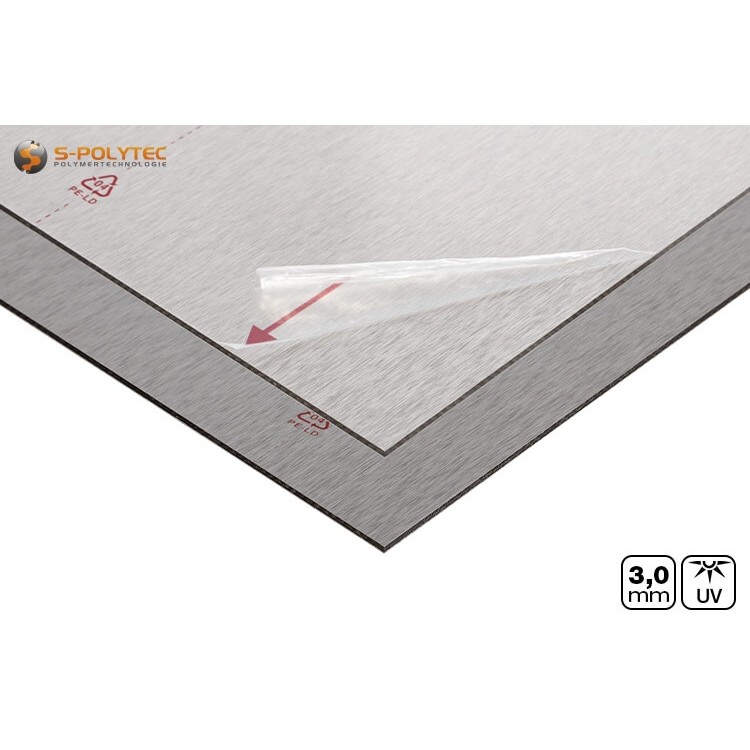

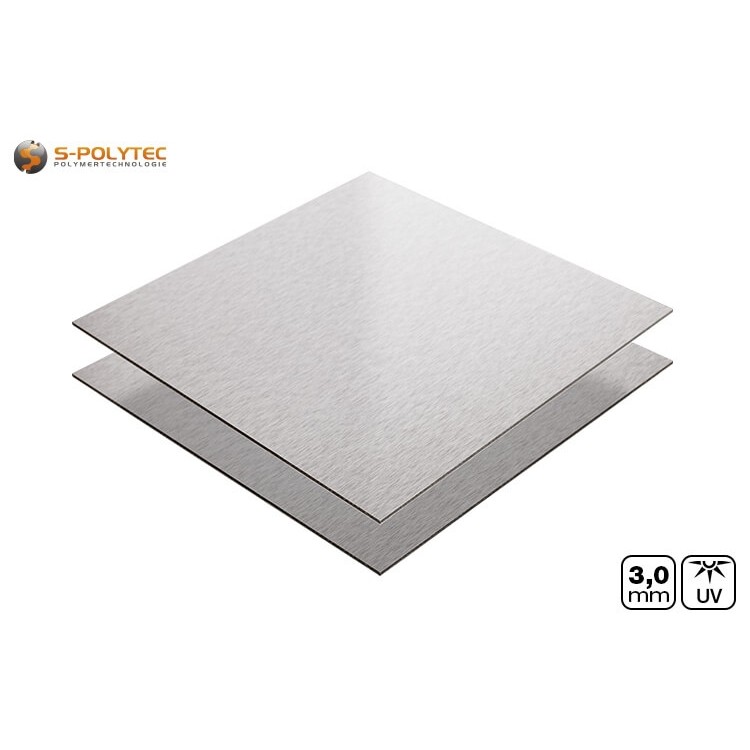

The picture shows two original aluminium composite panels as provided by us. By zooming in you can see the saw-cut quality in more detail - just move the mouse over the image. The colour scheme of the saw-cut is: aluminium-black-aluminium. These panels are cut to size on modern horizontal CNC plate saws so that we can guarantee a size tolerance of +/- 1 mm. Significantly narrower tolerances available on request.

Machining options for aluminium composite panels can be machined by: sawing, drilling, milling, grinding, painting, gluing.

  • Sawing is carried out with normal woodworking blades.
  • Milling is quite straightforward and takes place with plastic processing tools. Please note that we can mill all of our plastic sheets to your specifications. In case of need please send us your enquiry.
  • Aluminium composite panels can be drilled normally with drills for metal processing.
  • Aluminium composite panels can be painted quite simply.

Bonding of aluminium composite panels to one another is relatively simple. The right adhesive in our shop for these panels is PLEXUS MA 300. Please note that only the aluminum surfaces can be glued, the PE core is not bonded by the adhesives! For bonding aluminium composite panels with other materials, e.g. those commonly used in the construction and building industry, we recommend Parabond 600. The adhesives are shown below.

Additional Information

Additional Information

Product-ID88
Weight9.7050
Strength3
Standart Length3050
Standard width1500
Delivery TimeDispatch within 2-3 working days
PlasticAlu sandwich
MaterialN/A
UV resistanceUV resistant
ColorMetallic
Color accuracyN/A
RAL color codeN/A
Color designationAluminium brushed
