ASA/ABS Sheets grey grained custom cut

ASA/ABS sheets in gray (RAL 7040, window gray) grained in custom cut from 2mm to 4mm thickness are fully colored. The sheets are weather- and UV-resistant on the ASA side uv and therefore suitable for outdoor use

Delivery Time: Dispatch within 2-3 working days

calculate the price
  • at pieces 0,00 € (Base Price 0,00 € / m2)
  • at pieces 0,00 € (Base Price 0,00 € / m2)
  • at pieces 0,00 € (Base Price 0,00 € / m2)

All prices include 19% VAT.

Base Price 0,00 € / m2
0,00 € / pc.
0,0000 kg / pc.

All prices include 19% VAT.

Your price €0.00 Incl. % Tax Weight: 0,0000 kg
Request a sample

Request up to three free samples.

Dimensions of the samples approx. 200mm x 100mm

Code für Sicherheitsabfrage

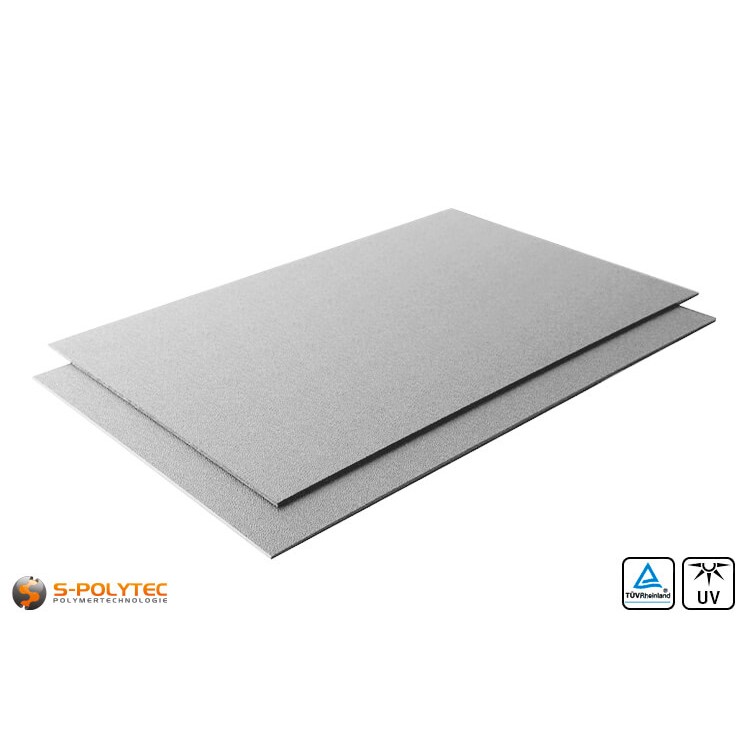

ASA/ABS plates in gray with UV-resistant ASA upper layer

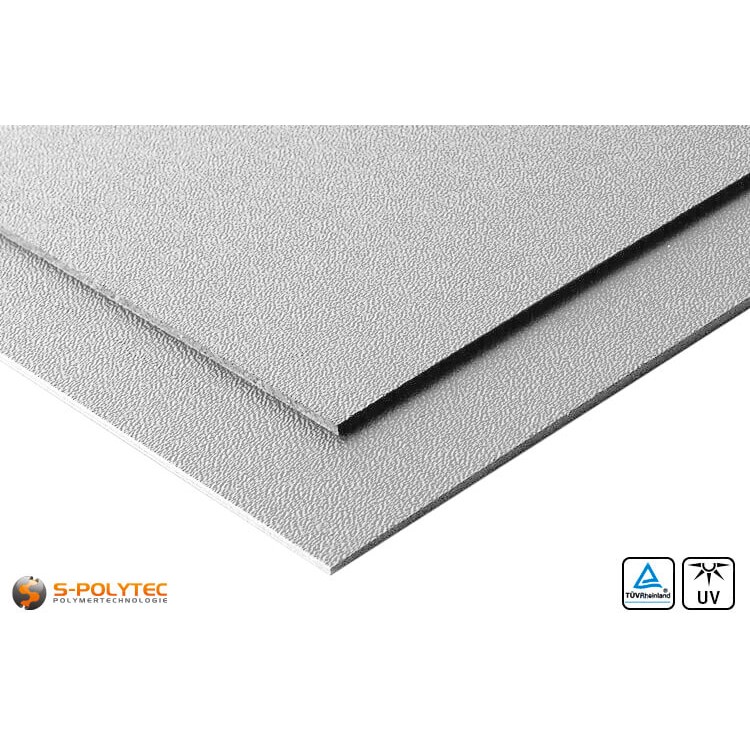

Our gray ASA/ABS panels with a one-sided ASA top layer have got a middle grain, which you can see very well on the detailed image. The gray color of the ASA/ABS panels matches to RAL7040 (window gray). The panels are colored completely gray , so that even the sawing and milling edges have got the color as RAL and are available in a thickness of 2mm or 4mm.

What is ASA/ABS

ABS sheets are not UV-resistant. On the other hand, ASA/ABS is a special plastic, where an ASA top layer with UV and weather-resistant properties is inextricably coextruded with the ABS support in an extrusion process.

Comparison from ASA/ABS and ABS

In contrast to conventional gray ABS plastic panels, the gray ASA/ABS panels are resistant to weathering. This is because the ASA/ABS panels have got a special ASA top layer, which is weatherproof and resistant to UV-radiation. The ASA/ABS plates in gray have the properties typical of ABS plates, such as high impact resistance, and good chemical resistance to nonpolar solvents.

Order your ASA/ABS panels in RAL7040 window gray conveniently online directly in the size you need. Just enter your required dimensions for length and width and choose between a thickness of 2mm or 4mm. The cutting takes place on one of our panel saws with high-precision CNC control and a very small sawing tolerance of +/- 1mm. Because of the constant storage of gray ASA/ABS sheets, the cutting takes place promptly, so that we can quickly deliver your UV-resistant ABS sheets of the desired size.

Application examples for our gray ASA/ABS plates

  • Thanks to thermoforming, impact-resistant housings made of ASA/ABS can be produced in almost any shape
  • ASA/ABS is often used by "amateur thermoformers" for the production of masks and costume pieces.
  • ASA/ABS panels in window gray (RAL7040) are often used for window coverings and facade construction
  • ABS plates in gray are ideal for the impact-resistant covering of machine parts
  • and many more

Processing of our gray ASA/ABS plates

Our ASA/ABS plates in gray can be processed in almost all known ways. From machining methods such as sawing, milling or grinding, to cutting with CO2-lasers or water jet cutting machines, ASA/ABS can be cut to any size. Also, the drilling of ABS plates with ASA upper layer isn't a problem. For this purpose, a commercial battery screw is enough.

Thermoforming or deep drawing is not a big challenge with gray ASA/ABS plastic. Therefore, ASA/ABS, appropriate knowledge required, can be drawn in almost any shape and then be painted, as it is often the case in model making or in the production of costumes.

Basically, the gluing or printing of our gray ASA/ABS sheets is not a problem, due to the grained ASA top layer, large-area film adhesions adhere only partially permanently. This also depends on the film thickness and the adhesive strength of the film. ASA/ABS in gray can be glued excellent and thanks to the weather-resistant ASA surface, these boards are therefore also perfect for large-scale paneling of facades.

NOTE: Our gray ASA/ABS sheets are not provided with a protective film due to the grained ASA surface.

Additional Information

Additional Information

Thickness2 - 4mm
Standart Length2000
Standard width1000
Delivery TimeDispatch within 2-3 working days
UV resistanceUV resistant on ASA surface
Color accuracyProduction according to RAL color system
RAL color codeRAL7040
Color designationWindow grey
