Aqua-Plus PP-R mounting unit for wall-mounted fittings in white

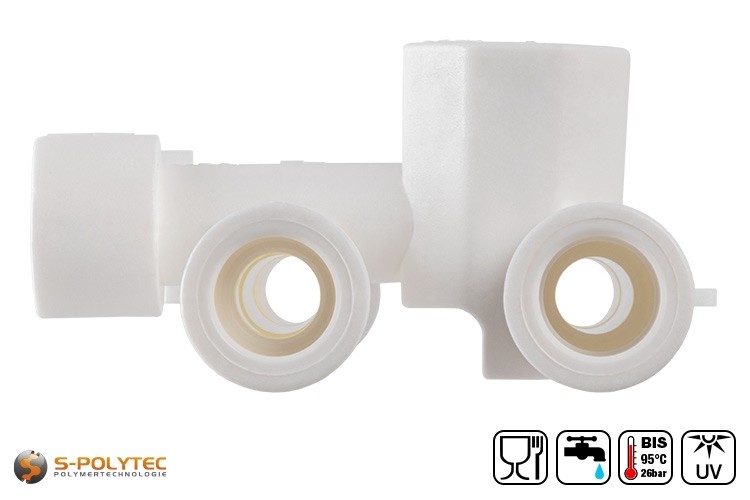

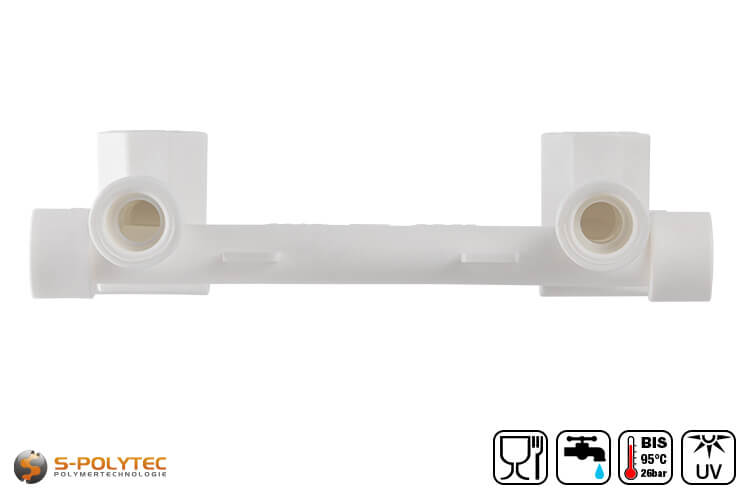

The Aqua-Plus PP-R mounting unit for wall fittings 90° IT DN20x1/2 inch in white is used for easy connection of shower and bath fittings and has 1/2 inch internal brass threads with a spacing of 153mm.

✓ For surface mounted fittings
✓ Distance dimension (gauge) 153mm
✓ 1/2 Inch Brass thread

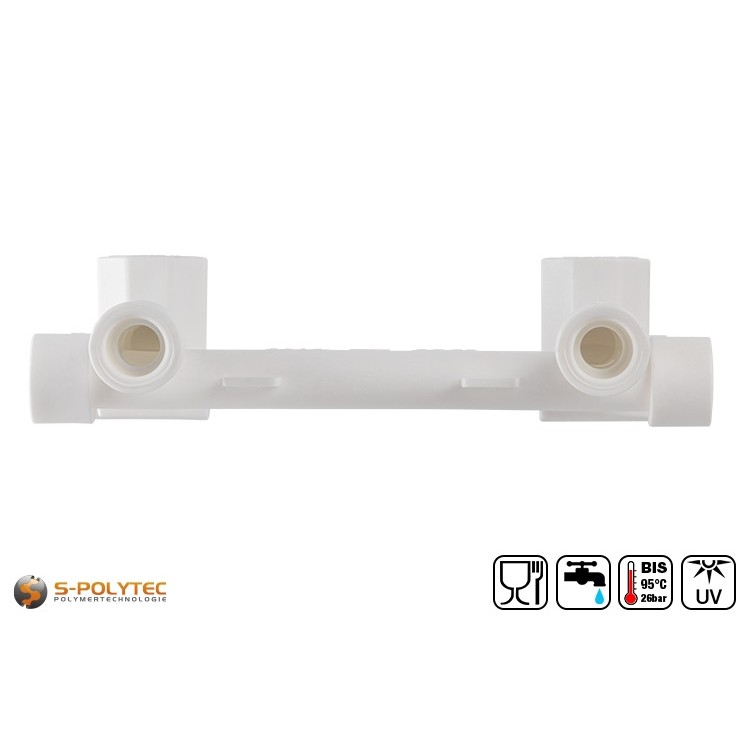

✓ For PP-R pipes DN20
✓ DVGW and SKZ certified

The white PP-R wall connection is suitable for mounting all commercially available surface-mounted fittings in the shower and bathroom.

Delivery Time: Dispatch within 2-3 working days

  • calculate the price
Base Price €9.70 / pc.
€9.70 / pc.
0,2850 kg / pc.

All prices include 19% VAT.

Your price €9.70 Incl. 19% Tax Weight: 0,2850 kg
Incl. 19% Tax
Description

Aqua-Plus PP-R mounting unit for wall-mounted fittings in white

1/2 Inch internal thread ✓ For PP-R pipes DN20 ✓ Stitch gauge 153mm ✓

The Aqua-Plus PP-R fitting installation unit is the perfect solution for easy integration of surface-mounted fittings within a pipe system made of PP-R and is suitable for all common shower and bathroom fittings. The well thought-out system offers a wide range of connection options. In contrast to most mounting plates, the supply line can be connected from below as well as from the side. In addition, one outlet each for the hot and cold water pipes can be connected. If this is not required, the matching sealing plugs for sealing unused pipe sockets are included in the installation set.

The connections on the wall side for hot and cold water are provided with a 1/2" internal thread. This is a high-quality brass insert that is completely enclosed in plastic except for the thread due to a complex manufacturing process. The thread size corresponds to the standard for sanitary installations. The S-connections required for most fittings, which adapt the 1/2" internal thread to a 3/4" external thread, can therefore be screwed in without any problems.

Scope of delivery:

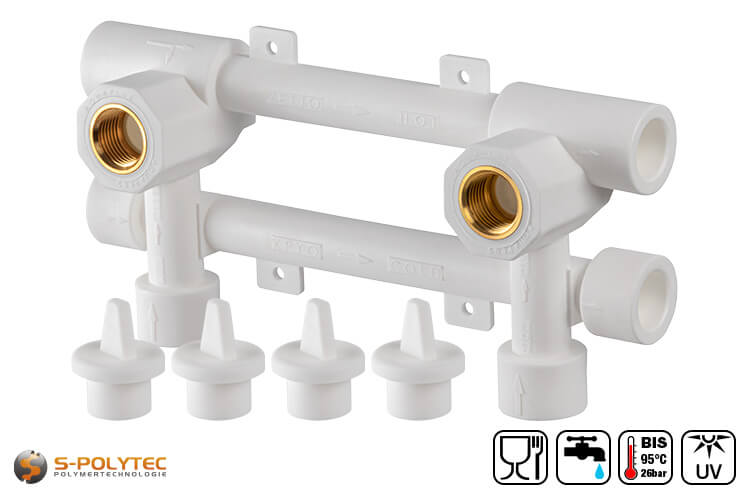

  • 1 x Aqua-Plus PP-R mounting unit for wall fittings in white
  • 4 x Aqua-Plus PP-R stopping plug DN20 in white

Properties of the PP-R surface-mounted fitting assembly unit

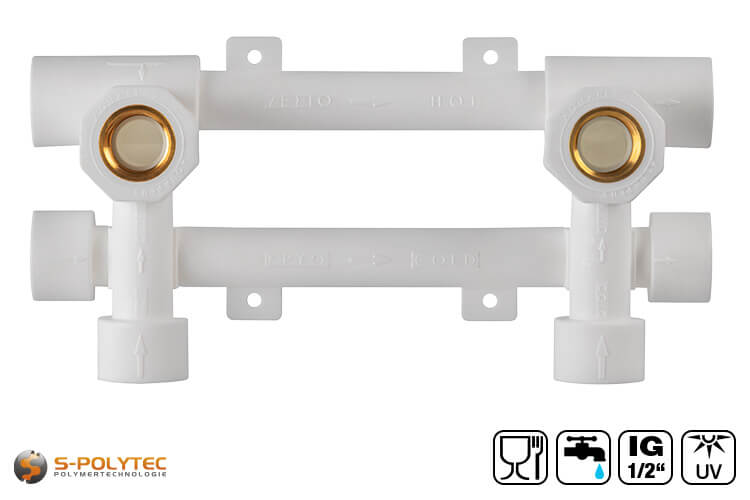

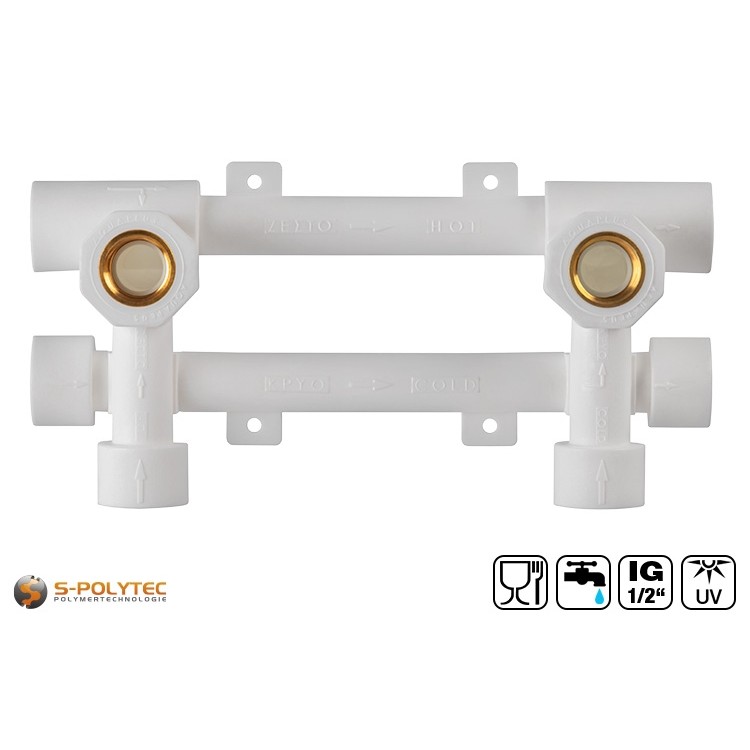

The Aqua-Plus mounting unit for surface-mounted taps is suitable for all commercially available shower taps and bath taps with hot and cold water connections. The spacing of the mounting plate is 153mm. This means that the distance between the hot water connection and the cold water connection measured from the respective centre corresponds to 153mm. With the mounting unit, the water pipes can be fed in both from the side and from below. In addition, the wall bracket is designed to ensure maximum flexibility when setting up the water circuit. The mounting plate can be used in the flow within a water-bearing circuit, as well as an end tap in the pipe system. For easy identification of the inlet and outlet connections, as well as the hot and cold water connections, all connections are marked with directional arrows and the designations HOT (for hot water) and COLD (for cold water).

When installing shower and bathroom fittings, approval for pipe systems carrying drinking water is a mandatory requirement. For this purpose, the Aqua-Plus PP-R pipe system fulfils all the necessary DIN and EN standards at national and international level. The requirements applicable in Germany according to DVGW or SKZ certification are also met, so that the assembly unit for wall fittings can be used without hesitation for water supply in sanitary facilities. Water temperatures of up to 95°C are possible, even though such temperatures are probably never needed for showering or bathing.

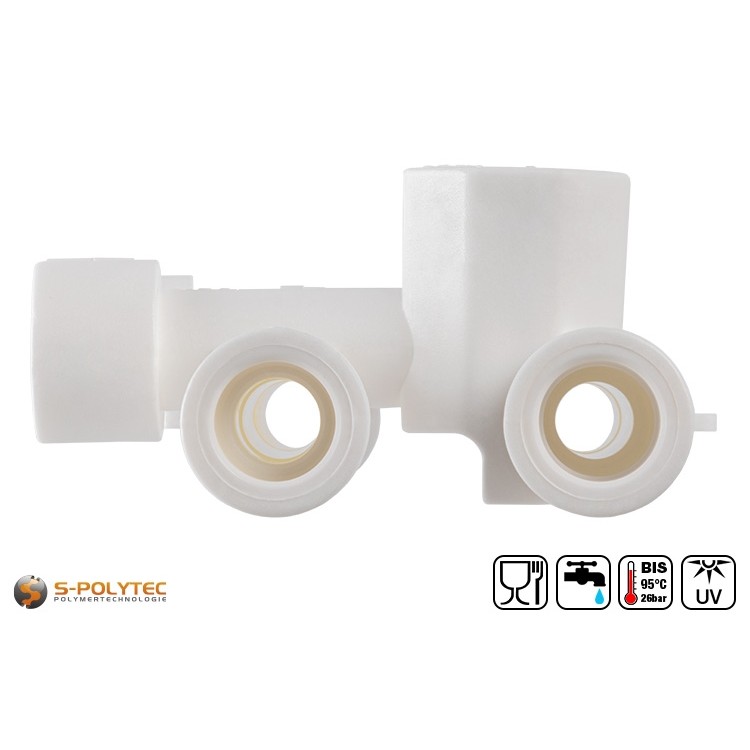

The connections arranged at a 90° angle are provided with a female brass thread with a thread diameter of 1/2". This thread size is standard in the field of sanitary installations, so that, depending on the fitting, suitable S-connections from 1/2" to 3/4" can easily be screwed into the internal thread. The brass insert is completely surrounded by polypropylene on the outside. In addition, it is also surrounded by plastic on the inside up to the thread, which ensures a constant internal diameter for a trouble-free flow. Moreover, this complex integration of the two materials ensures that the brass thread has a permanent, firm hold in the plastic without the connection coming loose when the S-connections are screwed in.

The wall connection bracket can be used for surface-mounted, flush-mounted or drywall installations. For easy installation, the wall bracket is provided with pre-drilled mounting points that enable secure fastening by screwing to the substrate without the need for additional, special brackets.

Connection of the PP-R mounting unit for surface-mounted fittings

The assembly unit can be integrated into the water circuit and connected in a variety of ways. A distinction must be made as to whether it is used in a continuous flow with supply and drainage, or whether only the supply lines for hot and cold water are to be used. In addition, it should be clear in advance whether the supply line is from below or from the side. The unused connection options of the wall bracket must be sealed by welding with the supplied sealing plugs before commissioning.

When welding the connections, we advise welding the plugs first and then the pipes. The other way round is also possible, but then it becomes a bit more complicated to handle - especially when heating up the remaining pipe sockets of the assembly unit. For both the PP-R pipes and the PP-R plugs, a pipe welder with a heating socket in size DN20 is required. For welding, the plug or the pipe and the corresponding pipe socket of the wall bracket must be heated simultaneously at a temperature of approx. 260°C for approx. 5 seconds and then inserted into each other without delay until the insertion depth of 14mm is reached. Make sure that this is done straight and without twisting. The maximum permissible axial deviation is 3° and must be observed for a watertight and pressure-resistant welded joint.

Welding the pipes and plugs to the assembly unit is much easier if this is done before mounting on the wall. The screw connection can then be carried out very easily with four screws. The distances of the fixings in the vertical as well as in the horizontal are 80mm. For mounting the surface-mounted fitting assembly unit, we recommend our fischer chipboard screws with countersunk head and partial thread in the size 4.5x 60mm or longer to ensure a secure hold.

WARNING: The PP-R pipes can only be inserted after the pipe and socket have softened, because the pipe diameter is about half a millimetre smaller than the outer diameter of the pipe.

Technical data of the white PP-R fitting assembly unit

  • Product type: Wall connection angle
  • Material (angle): Polypropylene random copolymer
  • Material (Thread): Brass
  • Edition: 1/2" Internal thread
  • Outer pipe diameter: 20,0mm
  • Direction change: 90°
  • Temperature resistance: -10°C - +95°C
  • Food authorisation: Yes
  • Drinking water approval: Yes
  • DVGW certified: Yes
  • Corrosion resistance: Excellent
Additional Information

Additional Information

Product-IDPPR-WANDA-DN20
Delivery TimeDispatch within 2-3 working days
EAN/GTIN4260604224851
SizeDN 20 x 1/2 inch
VersionWall connection angle
Ø Thread1/2"
Dimensions (W/H/D)226mm / 114mm / 57mm
Weight0.2850
Insertion depth14 mm
Heating time5 sec.
Cooling time> 2 min.
PlasticPolypropylene
MaterialPolypropylene random copolymer
UV resistanceUV stabilized
ColorWhite
